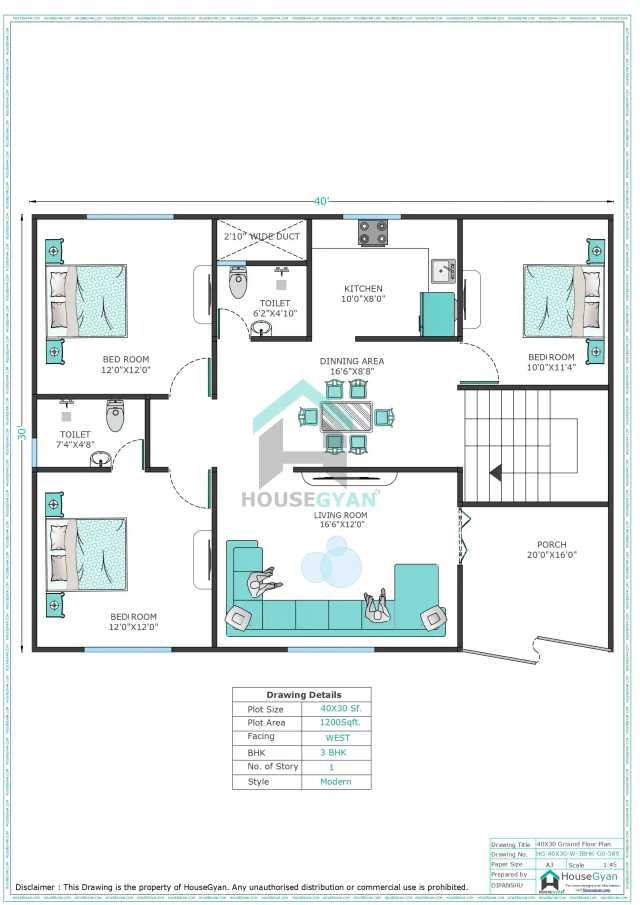

40X30 West Facing 3BHK Ground Floor House Plan | 1200 Sqft Plot Floor Plan

Description

This 40X30 West Facing 3BHK Ground Floor House Plan is designed for a 1200 sq. ft. plot and follows a modern single-storey layout. The plan provides three bedrooms, a spacious living room, dining area, kitchen, two toilets, and a large porch.

Two bedrooms measure 12'0" × 12'0", while the third bedroom measures 10'0" × 11'4". The living room and dining area are centrally positioned, creating a practical connection between the main spaces. The plan also includes a 2'10"-wide duct and a 20'0" × 16'0" porch, making it suitable for families looking for a functional 3BHK layout on a 40 × 30 ft west-facing plot.

Key Features of This 40X30 House Plan

Feature	Details
Plot Size	40 × 30 Sq. Ft.
Plot Area	1200 Sq. Ft.
Facing	West
House Type	3BHK
Number of Storeys	1
Style	Modern
Bedroom 1	12'0" × 12'0"
Bedroom 2	10'0" × 11'4"
Bedroom 3	12'0" × 12'0"
Living Room	16'6" × 12'0"
Dining Area	16'6" × 8'8"
Kitchen	10'0" × 8'0"
Toilets	2
Duct Width	2'10"
Porch	20'0" × 16'0"
House Style	Modern

Planning to customize this layout? Check our Custom House plan service to modify room sizes, add extra floors, or create a personalized home design.

FAQs

1. What is the plot size of this 3BHK house plan?

The plot size of this house plan is 40 × 30 feet, providing a total plot area of 1200 sq. ft. The layout is planned as a single-storey modern home with three bedrooms and other essential residential spaces. The available plot dimensions are used to accommodate the living, dining, kitchen, bedrooms, toilets, staircase area, and porch within the plan.

2. Is this a west-facing 3BHK house plan?

Yes, this is a west-facing 3BHK house plan. The drawing details specifically mention the facing direction as west. The plan is designed for a 40 × 30 ft plot and includes three bedrooms along with living, dining, kitchen, toilet, and porch spaces. The final suitability of the orientation should be checked according to the site and individual requirements.

3. What is the total area of this house plot?

The total plot area is 1200 sq. ft., based on the 40 × 30 ft plot dimensions shown in the drawing. The house plan is designed as a single-storey residence and makes use of the available plot for multiple functional spaces, including three bedrooms, a living room, dining area, kitchen, toilets, and a large porch.

4. How many bedrooms are provided in this floor plan?

This floor plan includes three bedrooms, making it a 3BHK house plan. Two bedrooms are shown with dimensions of 12'0" × 12'0", while the third bedroom measures 10'0" × 11'4". The bedrooms are positioned around the central living and dining spaces, creating a practical arrangement for a family home.

5. What are the dimensions of the living room?

The living room measures 16'6" × 12'0" according to the floor plan. It is positioned in the central portion of the house and is connected with the dining area. The room is furnished with seating in the drawing, demonstrating how the space can accommodate a comfortable family sitting arrangement while maintaining circulation between different parts of the home.

6. What is the size of the dining area?

The dining area measures 16'6" × 8'8". It is located centrally between the kitchen and living room, making it convenient for everyday family meals. The drawing shows a dining table within this space. Its placement also creates a connection between the main common areas and the bedrooms in this 40 × 30 ft house plan.

7. What is the kitchen size in this 3BHK plan?

The kitchen measures 10'0" × 8'0". It is positioned next to the dining area, providing a practical connection between food preparation and dining. The plan shows a cooking counter, sink, and other kitchen elements. The kitchen is located toward the upper central portion of the layout and is accessible from the common dining space.

8. How many toilets are included in this house plan?

The plan includes two toilets. One toilet is shown near the upper-left bedroom area and measures 7'4" × 8'0", while another smaller toilet is positioned near the central portion of the layout and measures 6'2" × 4'10". The two-toilet arrangement provides additional convenience for residents of this three-bedroom home.

9. Does the plan include a porch?

Yes, the house plan includes a spacious 20'0" × 16'0" porch. It is positioned at the front portion of the house and provides a covered/open transition area before entering the main living spaces. The porch occupies a significant portion of the front side, adding useful outdoor space to this west-facing 3BHK layout.

10. Is this a single-storey house plan?

Yes, this is a single-storey ground floor house plan. The drawing details specify the number of storeys as 1 and the style as modern. The complete layout is arranged on one floor and includes three bedrooms, living room, dining area, kitchen, two toilets, a duct, and a large porch within the 1200 sq. ft. plot.
