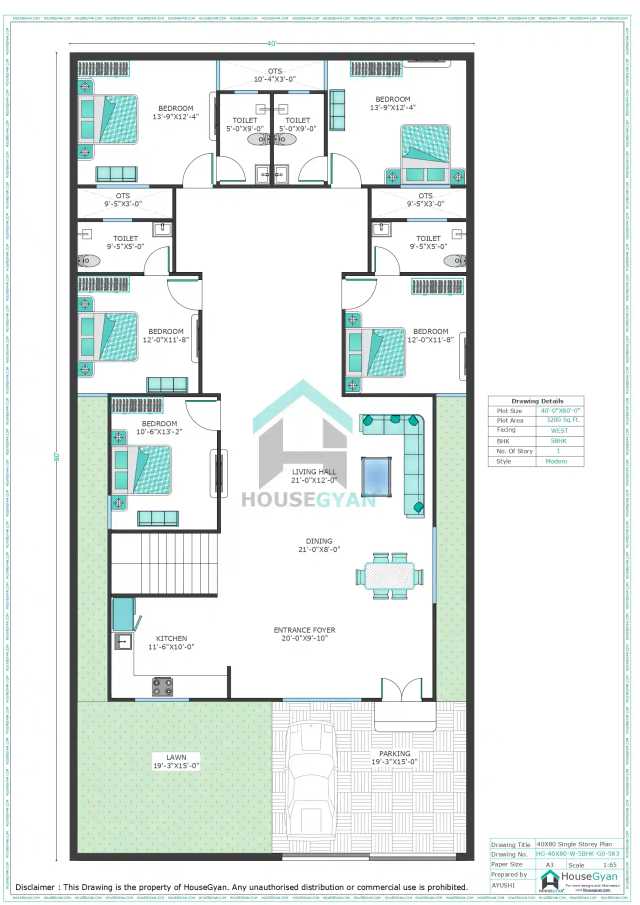

40X80 West Facing 5BHK Ground Floor House Plan | 3200 Sqft Plot Floor Plan

Description

This 40X80 West Facing 5BHK Ground Floor House Plan is designed for a spacious 3200 sq. ft. plot and follows a modern single-storey layout. The plan includes five bedrooms, making it suitable for large families who need multiple private spaces.

The ground floor features a generous 21'X12' living hall, 21'X8' dining area, and a 20'X9'10" entrance foyer that creates a spacious central zone. The layout also includes a kitchen, multiple toilets, OTS areas, parking, and a lawn. The bedrooms are distributed around the central living and dining spaces, providing convenient access while maintaining separation.

A dedicated 19'3"X15' parking area is provided at the front, along with a 19'3"X15' lawn. Overall, this modern 40X80 house plan makes effective use of the large plot with spacious rooms, open areas, and functional circulation.

Key Features of This 40X80 House Plan

Feature	Details
Plot Size	40X80 Sq. Ft.
Plot Area	3200 Sq. Ft.
Facing	West
BHK	5BHK
No. of Storey	1
Style	Modern
Living Hall	21'X12'
Dining Area	21'X8'
Entrance Foyer	20'X9'10"
Kitchen	11'6"X10'
Bedroom 1	13'9"X12'4"
Bedroom 2	13'9"X12'4"
Bedroom 3	12'X11'8"
Bedroom 4	12'X11'8"
Bedroom 5	10'6"X13'2"
Parking	19'3"X15'
Lawn	19'3"X15'
OTS Areas	Provided
Toilets	Multiple toilets provided

Planning to customize this layout? Check our Custom House plan service to modify room sizes, add extra floors, or create a personalized home design.

FAQs

1. What is the plot size of this 40X80 house plan?

This house plan is designed for a 40X80 feet plot, providing a total plot area of 3200 square feet. The spacious plot allows the layout to accommodate five bedrooms along with living, dining, kitchen, toilets, parking, lawn, and other functional spaces on a single floor.

2. Is this a west-facing 5BHK house plan?

Yes, this is a west-facing 5BHK ground floor house plan. The drawing details specify the plot as 40X80 feet, with a 3200 sq. ft. plot area and west-facing orientation. The plan is designed as a modern single-storey home with five bedrooms.

3. How many bedrooms are included in this 40X80 floor plan?

The layout includes five bedrooms, making it a 5BHK house plan. The bedrooms are positioned around the central living and dining areas and have different dimensions, including 13'9"X12'4", 12'X11'8", and 10'6"X13'2" spaces.

4. What is the size of the living hall in this house plan?

The living hall in this 40X80 floor plan measures approximately 21'X12'. It is positioned in the central portion of the house and connects with the dining area and other spaces, creating a spacious common area for family activities and everyday use.

5. Does this plan include a dining area?

Yes, the house plan includes a dedicated 21'X8' dining area. It is located next to the living hall and forms part of the main central space. The dining area provides a defined space for family meals while maintaining a connection with the living area.

6. Is parking available in this 40X80 house plan?

Yes, a dedicated 19'3"X15' parking area is provided toward the front of the property. The parking space is positioned beside the entrance area and provides a designated area for vehicle parking within the overall ground floor layout.

7. Does the plan have a lawn area?

Yes, the layout includes a 19'3"X15' lawn at the front portion of the property. The lawn is positioned beside the parking area and adds an open outdoor space to the ground floor plan.

8. What is the kitchen size in this 40X80 floor plan?

The kitchen measures approximately 11'6"X10'. It is positioned toward the front-left side of the layout and connects with the main entrance foyer and dining area, making it conveniently accessible from the central areas of the house.

9. Does this house plan include OTS areas?

Yes, the plan includes multiple OTS (Open to Sky) areas. These spaces are shown near the bedrooms and toilet areas in the layout. They can help provide open space within the floor plan while separating certain functional areas.

10. Is this a single-storey house plan?

Yes, this is a single-storey or ground floor house plan. The drawing details specify No. of Storey: 1. The complete 5BHK arrangement, including bedrooms, living hall, dining area, kitchen, toilets, entrance foyer, parking, and lawn, is planned on the ground floor.
