40X80 West Facing 3BHK Ground Floor House Plan | 3200 Sqft Plot Floor Plan

Description

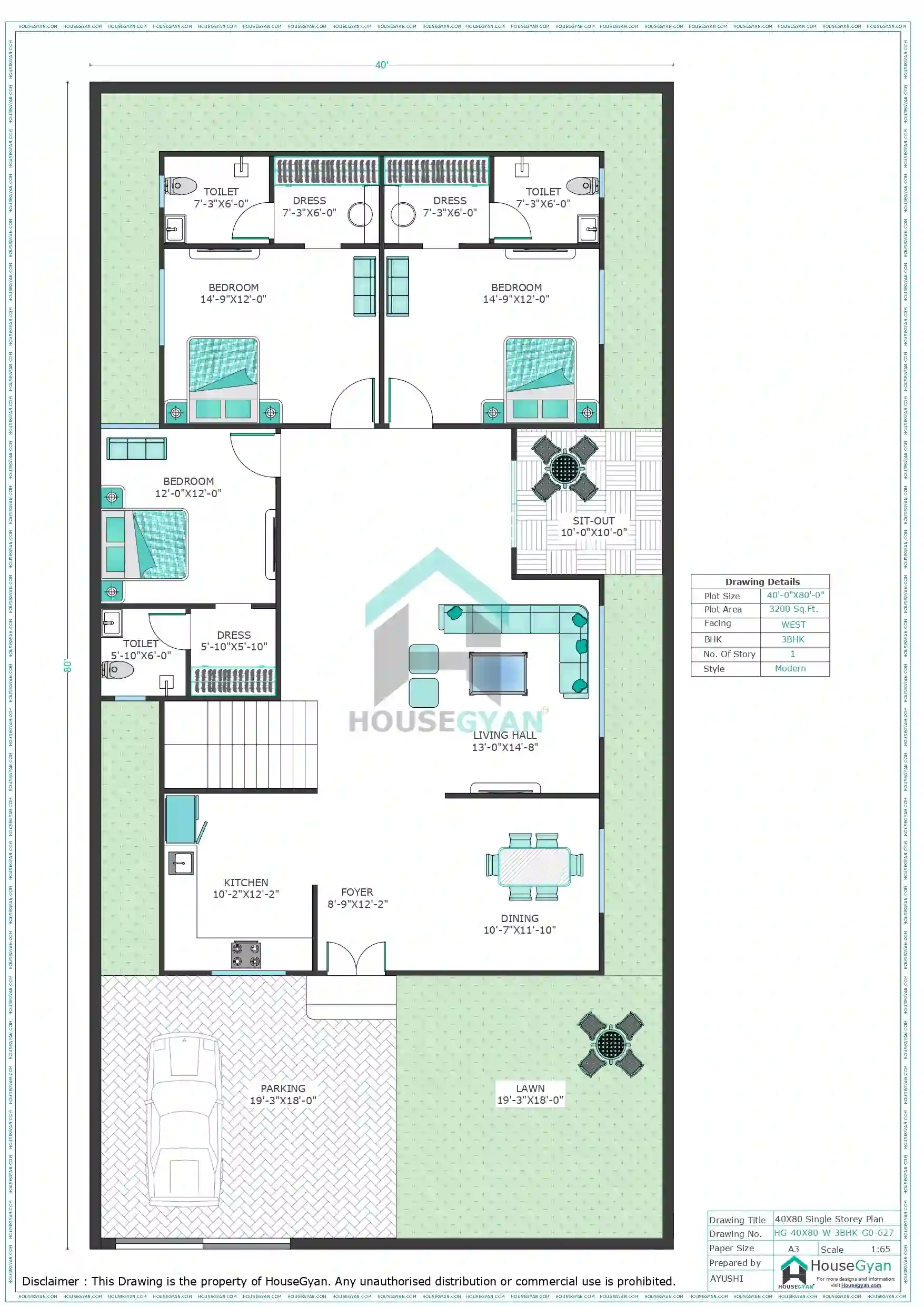

This 40x80 west-facing 3 BHK house plan is a spacious single-floor home designed for a 3,200 sq ft plot, with a practical layout that combines comfortable bedrooms, generous common areas, outdoor spaces and dedicated car parking. The plan includes three bedrooms, a living hall, dining area, kitchen, multiple toilets, dress areas, a foyer, sit-out, staircase, lawn and parking space.

The layout features a spacious 13'0" × 14'8" living hall in the central-right portion of the house, providing a comfortable common area for family activities and entertaining guests. A separate 10'7" × 11'10" dining area is positioned near the kitchen and foyer, creating a convenient arrangement for everyday meals and family gatherings. The plan includes three bedrooms with different room dimensions to accommodate varying needs.

Two bedrooms measuring 14'9" × 12'0" each are positioned toward the rear of the house, while the third bedroom measures 12'0" × 12'0" and is located on the left side. Dedicated dress areas and attached toilets are provided for the rear bedrooms, while the third bedroom has an adjacent dress area and toilet.

The kitchen measures approximately 10'2" × 12'2" and is positioned toward the front-left portion of the house, close to the dining area and entrance foyer. The 8'9" × 12'2" foyer provides an entry space connecting the front entrance with the interior living areas. Outdoor spaces enhance the layout, including a 10'0" × 10'0" sit-out on the right side and a spacious 19'3" × 18'0" lawn at the front-right portion of the plot.

A dedicated 19'3" × 18'0" parking area is provided at the front-left side for vehicle parking. The staircase is positioned beside the third bedroom and kitchen area, offering access to an upper floor if supported by the structural design.

This 3,200 sq ft west-facing house plan is suitable for homeowners looking for a 40x80 3 BHK ground floor house plan with spacious bedrooms, dress areas, a separate living and dining arrangement, outdoor relaxation spaces, a lawn and dedicated car parking.

Key Features of This 40 x 80 Residential Plan

Planning to customize this layout? Check our Custom House plan service to modify room sizes, add extra floors, or create a personalized home design.

Want to Edit This Plan or Add 3D Elevation, Structure and MEP Drawings?

Like this plan but want some changes and adjustments? The layout can be customised according to your requirements, including:

• Custom layout changes and adjustments

• 3D front elevation designs

• Structural and working drawings

• Electrical, plumbing and drainage drawings

• Interior design concepts in 2D and 3D

• Vastu-based layout modifications, if required

Call or WhatsApp us to discuss your house plan requirements and get a customised design.

FAQ About This 40x80 House Plan

1. Is a 40x80 ft plot suitable for a 3 BHK house?

Yes. A 40x80 ft plot provides 3,200 sq ft of plot area, offering space for three bedrooms, a living hall, dining area, kitchen, toilets, dress areas, a foyer, a sit-out, a lawn and parking.

2. Is this house plan suitable for a west-facing plot?

Yes. The drawing identifies the plot as west facing. If you have specific Vastu requirements, the layout can be reviewed and customised accordingly.

3. How many bedrooms are included in this 40x80 house plan?

The plan includes three bedrooms. Two bedrooms measure 14'9" × 12'0" each, while the third measures 12'0" × 12'0".

4. What is the size of the living hall?

The living hall measures approximately 13'0" × 14'8", providing a dedicated common area for family activities and entertaining guests.

5. Does this plan include a separate dining area?

Yes. The house plan includes a separate 10'7" × 11'10" dining area, positioned close to the kitchen and foyer.

6. What is the kitchen size in this 40x80 plan?

The kitchen measures approximately 10'2" × 12'2" and is positioned toward the front-left portion of the house, near the dining area.

7. Does this house plan include attached toilets?

Yes. Toilet spaces are shown alongside the bedroom areas. The exact attachment and access arrangements should be confirmed from the original drawing before construction.

8. Does the plan include dress areas?

Yes. Dedicated dress areas are shown near the bedrooms, providing space for wardrobe and changing arrangements.

9. Does this 40x80 house plan include a lawn and sit-out?

Yes. The drawing includes a 19'3" × 18'0" lawn and a 10'0" × 10'0" sit-out, offering outdoor spaces for relaxation and seating.

10. Does this 40x80 house plan include car parking and a staircase?

Yes. The plan provides a 19'3" × 18'0" parking area and a staircase. Any future upper-floor construction should be planned according to a structural engineer's recommendations.
