40X80 West Facing 4BHK Ground Floor House Plan | 3200 Sqft Plot Floor Plan

Description

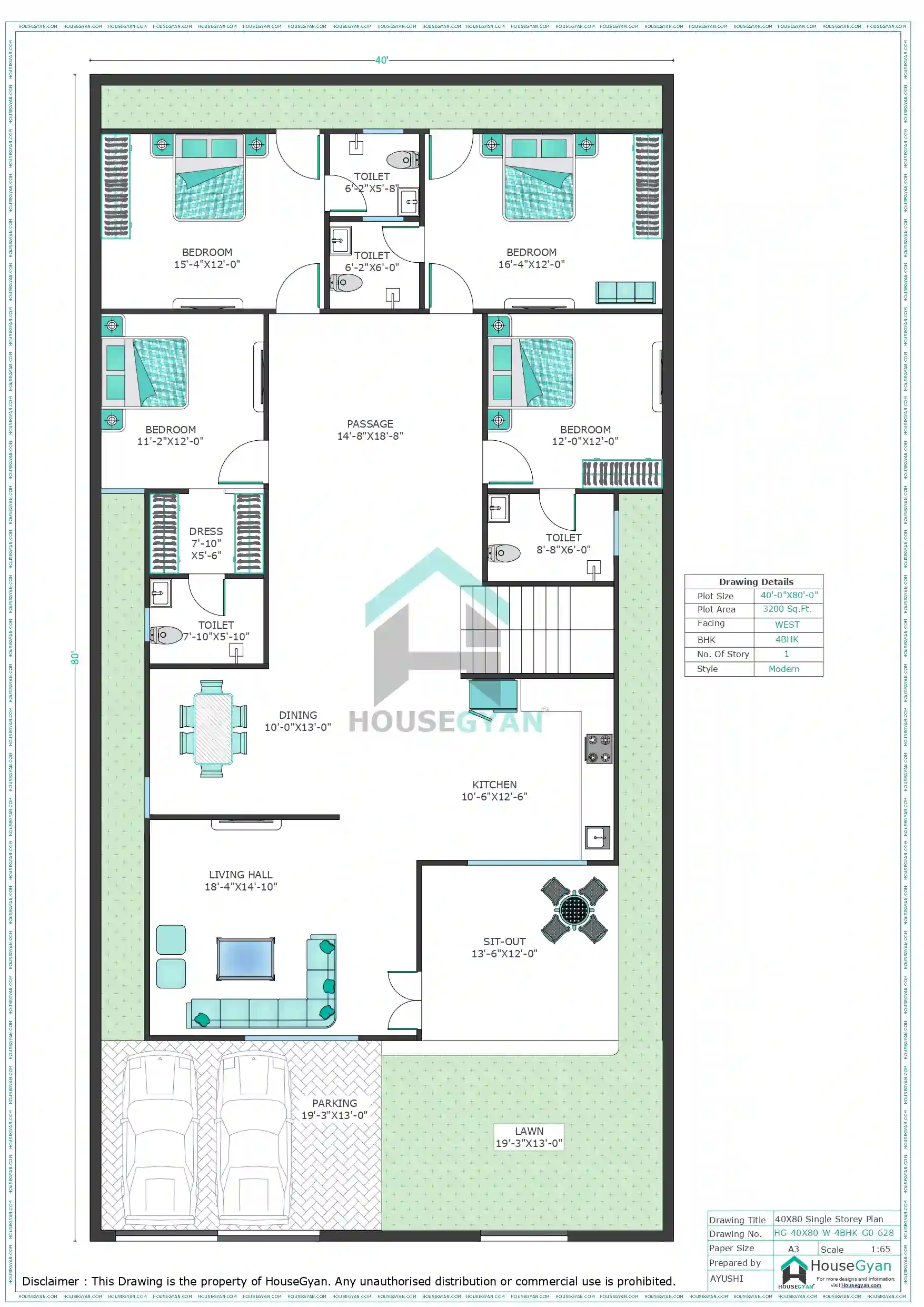

This 40x80 west-facing 4 BHK house plan is a spacious single-floor home designed for a 3,200 sq ft plot, with a practical layout that accommodates four bedrooms, a living hall, dining area, kitchen, multiple toilets, a dress area, a central passage, a sit-out, lawn and dedicated parking for two cars.

The layout features a spacious 18'4" × 14'10" living hall in the front portion of the house, providing a comfortable common area for family activities and entertaining guests. A separate 10'0" × 13'0" dining area is positioned near the kitchen, creating a convenient arrangement for family meals and everyday use. The house includes four bedrooms with different dimensions to suit family requirements.

The two rear bedrooms measure 15'4" × 12'0" and 16'4" × 12'0", while the two additional bedrooms measure 11'2" × 12'0" and 12'0" × 12'0". The bedrooms are arranged around a spacious central passage measuring 14'8" × 18'8", which connects the private bedroom areas with the common spaces.

The kitchen measures approximately 10'6" × 12'6" and is positioned toward the front-right portion of the house, close to the dining area. A dedicated 7'0" × 5'6" dress area is provided near one of the bedrooms, adding convenience for clothing and wardrobe storage.

The plan includes multiple toilets measuring 6'2" × 5'8", 6'2" × 6'0", 7'10" × 5'10" and 8'8" × 6'0", along with an additional toilet measuring 8'8" × 6'0" as shown in the drawing. These facilities are distributed across the bedroom areas for convenient access. Outdoor spaces enhance the layout, including a 13'6" × 12'0" sit-out at the front-right side and a 19'3" × 13'0" lawn at the front.

A dedicated 19'3" × 13'0" parking area is provided at the front-left side, with space arranged for two cars. The staircase is positioned beside the kitchen and bedroom area, providing access to an upper floor if supported by the structural design.

This 3,200 sq ft west-facing house plan is suitable for homeowners looking for a 40x80 4 BHK ground floor house plan with four bedrooms, a spacious central passage, separate living and dining areas, a dedicated dress area, outdoor seating, a lawn and two-car parking.

Key Features of This 40x80 House Plan

Planning to customize this layout? Check our Custom House plan service to modify room sizes, add extra floors, or create a personalized home design.

Want to Edit This Plan or Add 3D Elevation, Structure and MEP Drawings?

Like this plan but want some changes and adjustments? The layout can be customised according to your requirements, including:

• Custom layout changes and adjustments

• 3D front elevation designs

• Structural and working drawings

• Electrical, plumbing and drainage drawings

• Interior design concepts in 2D and 3D

• Vastu-based layout modifications, if required

Call or WhatsApp us to discuss your house plan requirements and get a customised design.

FAQ About This 40x80 House Plan

1. Is a 40x80 ft plot suitable for a 4 BHK house?

Yes. A 40x80 ft plot provides 3,200 sq ft of plot area, allowing this layout to accommodate four bedrooms, living and dining areas, a kitchen, toilets, a dress area, a sit-out, lawn and parking.

2. Is this house plan suitable for a west-facing plot?

Yes. The drawing identifies the plot as west facing. If specific Vastu requirements are needed, the layout can be reviewed and customised accordingly.

3. How many bedrooms are included in this 40x80 plan?

The plan includes four bedrooms. Their approximate dimensions are 15'4" × 12'0", 16'4" × 12'0", 11'2" × 12'0" and 12'0" × 12'0".

4. What is the size of the living hall?

The living hall measures approximately 18'4" × 14'10", offering a spacious common area for family activities and guests.

5. Does this plan have a separate dining area?

Yes. A dedicated 10'0" × 13'0" dining area is provided near the kitchen for convenient meal preparation and serving.

6. What is the kitchen size?

The kitchen measures approximately 10'6" × 12'6" and is positioned near the dining area in the front-right portion of the layout.

7. How many toilets are included in this 4 BHK house plan?

The drawing shows five toilet spaces. Their final count, dimensions and access arrangements should be verified against the original architectural drawing before construction.

8. Does the plan include a separate dress area?

Yes. A dedicated 7'0" × 5'6" dress area is shown beside one of the bedrooms, providing space for wardrobe and changing arrangements.

9. Does this 40x80 house plan include a lawn and sit-out?

Yes. The plan includes a 19'3" × 13'0" lawn and a 13'6" × 12'0" sit-out, offering outdoor space for relaxation and seating.

10. Does this 40x80 house plan include parking for two cars?

Yes. The drawing shows a 19'3" × 13'0" parking area arranged for two cars. Actual vehicle clearance and manoeuvring space should be confirmed based on the vehicles and site dimensions.
