24X36 North Facing 1BHK Ground Floor House Plan | 864 Sqft Plot Floor Plan

Description

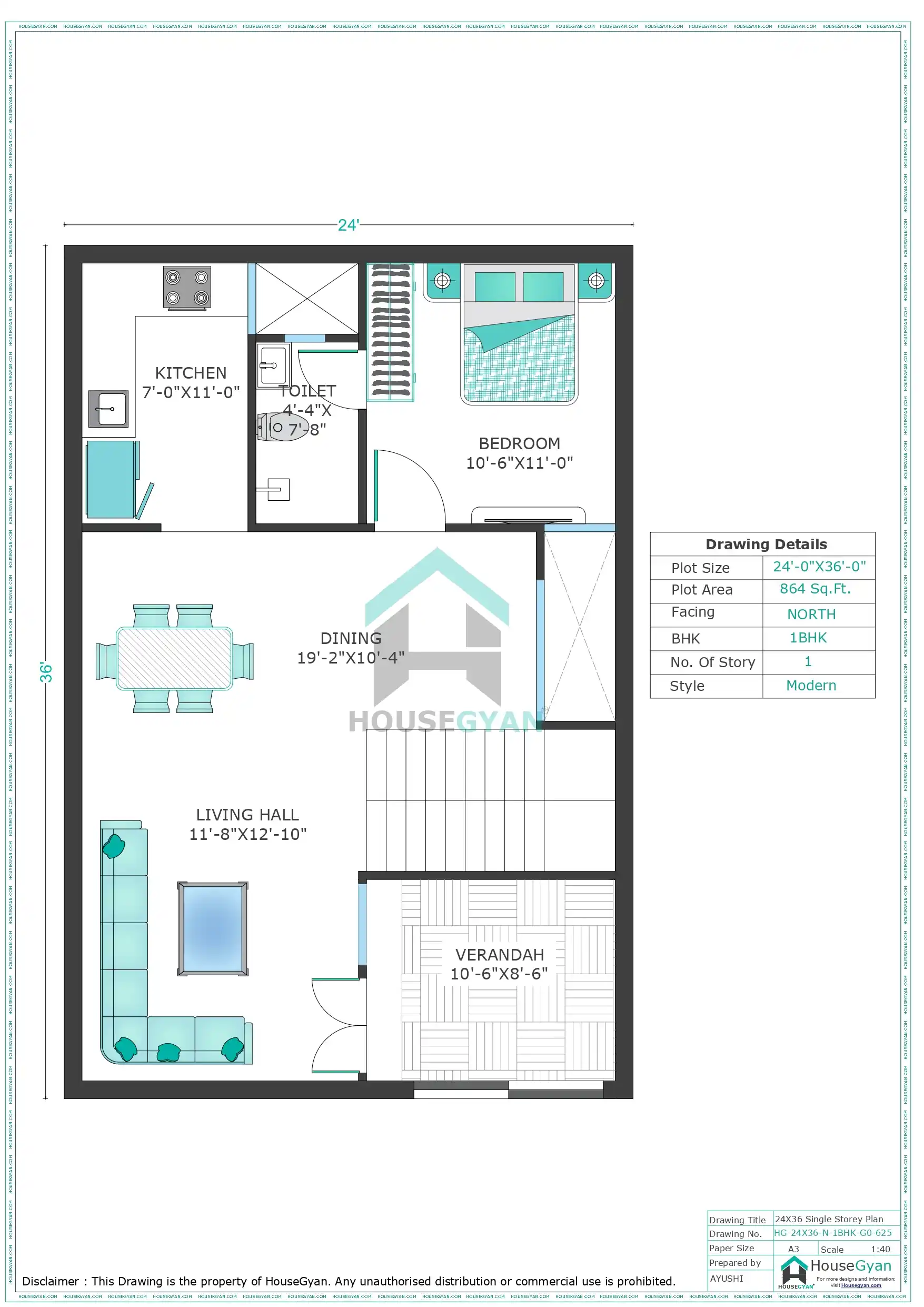

This 24x36 north-facing 1 BHK house plan is a compact single-floor home designed for an 864 sq ft plot, with a practical layout that makes efficient use of the available space. The plan includes one bedroom, a living hall, a separate dining area, a kitchen, one toilet, a staircase and a front verandah.

The layout features a living hall measuring 11'8"×12'10" in the front-left portion of the house, providing a comfortable common area for family activities and guests. The room accommodates an L-shaped sofa arrangement and a centre table, creating a functional space for everyday living. A separate dining area measuring 19'2"×10'4" is positioned in the central portion of the house.

Its spacious layout provides room for a dining table and connects the living area with the kitchen and bedroom, helping maintain a practical flow between the main spaces. The bedroom measures approximately 10'6"×11'0" and is located toward the rear-right portion of the plan.

It provides space for a bed, bedside tables and storage, offering a private and comfortable sleeping area within this compact 1 BHK home. The kitchen measures 7'0"×11'0" and is positioned in the rear-left portion of the layout. It features space for a cooking counter, sink and essential kitchen storage.

A toilet measuring approximately 4'4"×7'8" is located next to the kitchen, providing convenient access from the internal living spaces. The plan also includes a front verandah measuring 10'6"×8'6", providing a defined entrance and a useful transitional space between the outdoors and the living area.

An internal staircase is positioned along the right-central portion of the layout, allowing access to an upper floor if the building is designed for future expansion. This 864 sq ft north-facing house plan is suitable for homeowners looking for a 24x36 1 BHK ground floor house plan with a separate dining area, a practical kitchen, a spacious living hall, a front verandah and an internal staircase.

Key Features of This 24 x 36 House Plan

Planning to customize this layout? Check our Custom House plan service to modify room sizes, add extra floors, or create a personalized home design.

Want to Edit This Plan or Add 3D Elevation, Structure and MEP Drawings?

Like this plan but want some changes and adjustments? The layout can be customised according to your requirements, including:

• Custom layout changes and adjustments

• 3D front elevation designs

• Structural and working drawings

• Electrical, plumbing and drainage drawings

• Interior design concepts in 2D and 3D

• Vastu-based layout modifications, if required

Call or WhatsApp HouseGyan to discuss your house plan requirements and get a customised design.

FAQ About This 24x36 House Plan

1. Is a 24x36 ft plot suitable for a 1 BHK house?

Yes. A 24×36 ft plot provides 864 sq ft of plot area, allowing this plan to accommodate a bedroom, living hall, dining area, kitchen, toilet, staircase and front verandah.

2. Is this house plan suitable for a north-facing plot?

Yes. The drawing identifies the plot as north facing. If you have specific Vastu requirements, the layout can be reviewed and customised accordingly.

3. What is the bedroom size in this 24x36 plan?

The bedroom measures approximately 10'6"×11'0", providing space for a bed, bedside tables and storage.

4. What is the size of the living hall?

The living hall measures approximately 11'8"×12'10", offering space for seating furniture and a centre table for family activities and guests.

5. Does this house plan have a separate dining area?

Yes. A dedicated 19'2"×10'4" dining area is provided in the central portion of the layout, with space for a dining table.

6. What is the kitchen size?

The kitchen measures approximately 7'0"×11'0" and is positioned toward the rear-left side of the house.

7. How many toilets are included in this 1 BHK plan?

The plan includes one toilet measuring approximately 4'4"×7'8", located next to the kitchen.

8. Does this 24x36 house plan include a verandah?

Yes. A front verandah measuring 10'6"×8'6" provides an entrance area and a transitional space between the outdoors and the interior.

9. Does this house plan include a staircase for future expansion?

Yes. An internal staircase is provided along the right-central portion of the layout. Its suitability for an additional floor depends on structural design and building requirements.

10. Can this 24x36 house plan be customised?

Yes. The plan can be customised according to your family’s needs, plot conditions and design preferences. Options include layout changes, 3D front elevation, structural drawings, electrical and plumbing plans, interior design and Vastu-related modifications.
