16X55 West Facing 1BHK Ground Floor House Plan | 880 Sqft Plot Floor Plan

Description

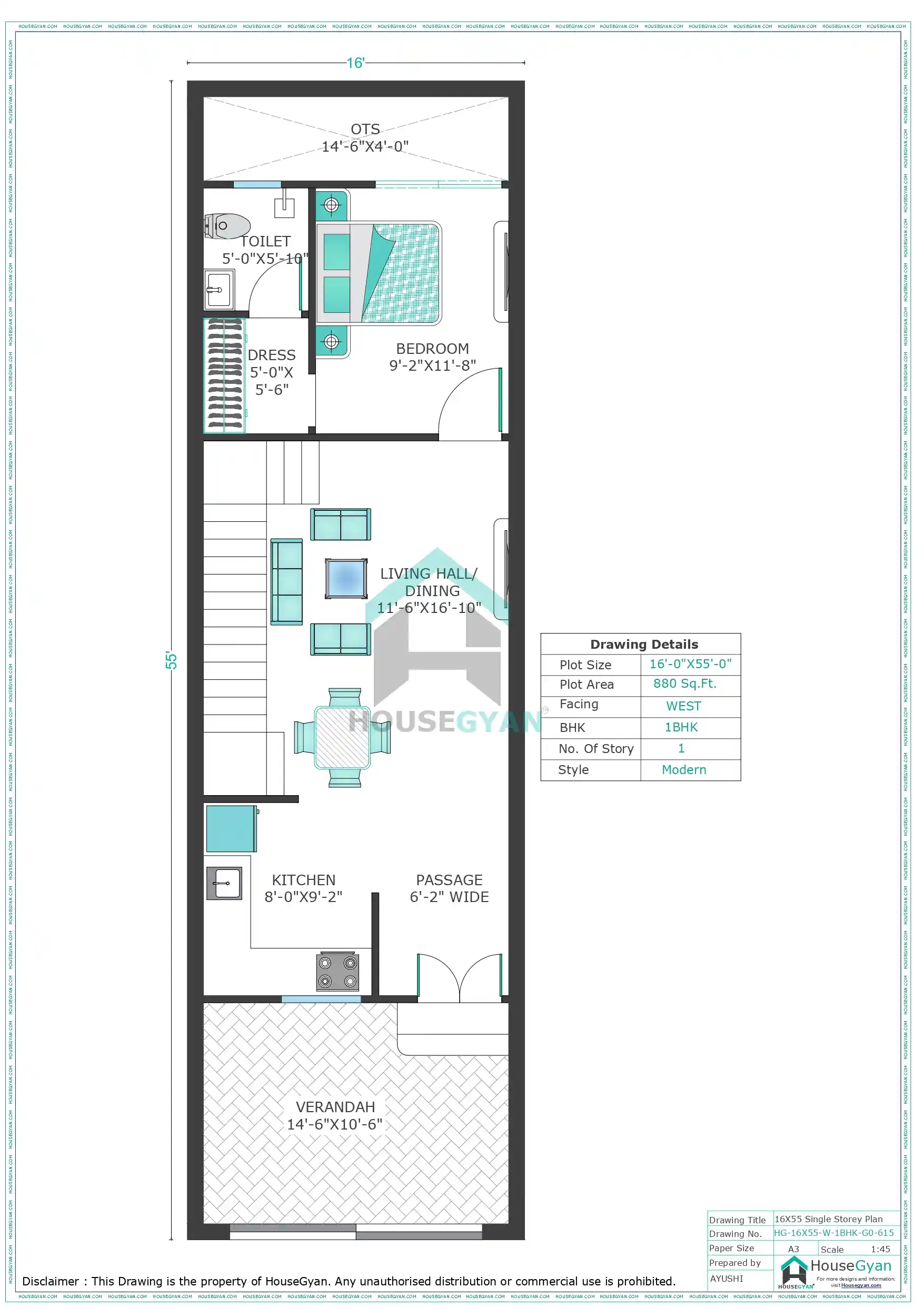

This 16x55 west-facing 1 BHK house plan is a compact single-floor home designed for an 880 sq ft plot, making efficient use of a narrow 16-ft frontage. The layout includes one bedroom, a combined living and dining area, kitchen, attached toilet, dress area, passage, spacious verandah and an OTS space.

The 11'6"×16'10" living/dining area forms the main common space of the house and provides enough room for both seating and dining. The kitchen measures approximately 8'0"×9'2" and is positioned toward the front portion for convenient access.

The bedroom measures approximately 9'2"×11'8" and is accompanied by a 5'0"×5'6" dress area and a 5'0"×5'10" toilet. At the front, a large 14'6"×10'6" verandah creates a useful semi-open entrance space. An 14'6"×4'0" OTS is also provided near the bedroom for additional natural light and ventilation.

Key Features of This 16x55 House Plan

Feature	Details
Plot Size	16 × 55 ft
Plot Area	880 sq ft
Facing	West
Floors	1
Bedrooms	1
Bathrooms	1
Living/Dining Area	11'6" × 16'10"
Kitchen	8'0" × 9'2"
Bedroom	9'2" × 11'8"
Dress Area	5'0" × 5'6"
Toilet	5'0" × 5'10"
OTS	14'6" × 4'0"
Passage Width	6'2"
Verandah	14'6" × 10'6"
Car Parking	Not shown
Internal Staircase	Yes
Lift	No
Style	Modern

Planning to customize this layout? Check our Custom House plan service to modify room sizes, add extra floors, or create a personalized home design.

FAQ About This 16x55 House Plan

1. Is a 16x55 ft plot suitable for a 1 BHK house?

Yes. A 16x55 ft plot provides 880 sq ft of plot area, and this layout uses the narrow frontage efficiently while providing a bedroom, living/dining area, kitchen, toilet, dress area and verandah.

2. Is this house plan suitable for a west-facing plot?

Yes. The drawing identifies the plot as west facing. If you have specific Vastu requirements, the layout can be customised accordingly.

3. What is the size of the bedroom in this 16x55 plan?

The bedroom measures approximately 9'2"×11'8", providing a practical private space within the compact 1 BHK layout.

4. Does the bedroom have a separate dress area?

Yes. A dedicated 5'0"×5'6" dress area is provided beside the bedroom, offering additional space for wardrobes and changing.

5. What is the size of the living and dining area?

The combined living and dining area measures approximately 11'6"×16'10", allowing the main common space to accommodate both seating and dining arrangements.

6. What is the kitchen size?

The kitchen measures approximately 8'0"×9'2" and is positioned near the living/dining area for convenient circulation.

7. Does this 1 BHK plan have an attached toilet?

Yes. A 5'0"×5'10" toilet is provided alongside the bedroom and dress area.

8. What is the purpose of the OTS in this house plan?

The plan includes an 14'6"×4'0" OTS (Open-to-Sky) space near the bedroom. It can help bring natural light and ventilation into the adjoining areas.

9. How large is the verandah?

The front verandah measures approximately 14'6"×10'6", providing a spacious semi-open area at the entrance of the house.

10. Is car parking provided in this 16x55 house plan?

No dedicated car parking area is shown in the provided drawing. The available front verandah and site layout should be reviewed separately if vehicle parking is required.

11. Can this 16x55 west-facing 1 BHK plan be customised?

Yes. Room dimensions, kitchen arrangement, entrance, toilet, verandah and other spaces can potentially be modified according to your requirements, site conditions, structural feasibility and applicable building regulations.
