40X70 West Facing 5BHK Ground Floor House Plan | 2800 Sqft Plot Floor Plan

Description

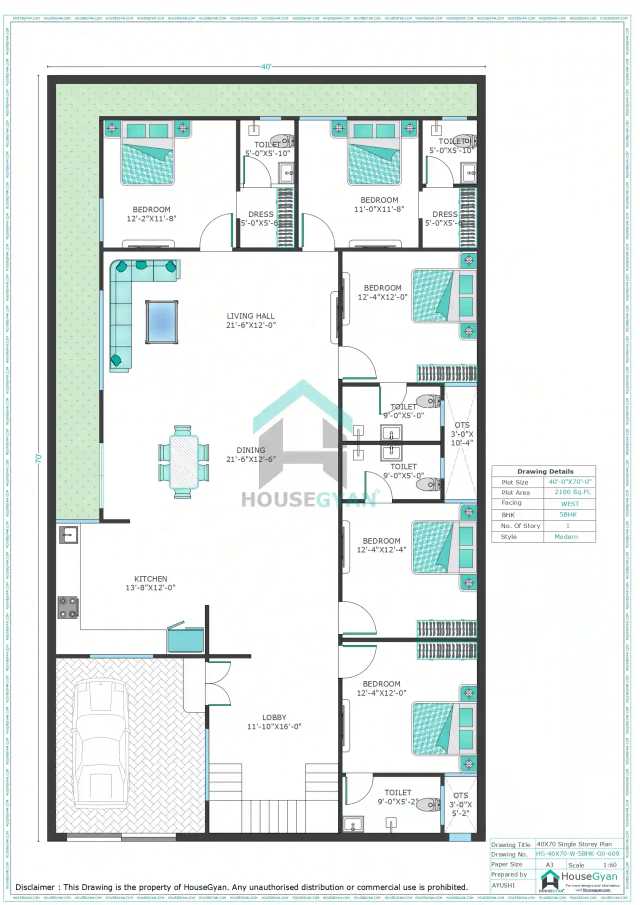

This 40x70 west facing 5 BHK house plan is a spacious single-floor home designed for a 2,800 sq ft plot, with a practical layout that accommodates five bedrooms along with generous common and utility spaces. The plan includes a large living hall, dining area, kitchen, five bedrooms, four toilets, dress areas, OTS spaces, lobby and dedicated parking.

The plan features a spacious 21'6"×12'0" living hall at the centre-left, providing ample room for family gatherings and guests. A separate 21'6"×12'6" dining area is positioned alongside the living space, creating a comfortable zone for family meals. The kitchen measures approximately 13'8"×12'0", offering a generous cooking area suitable for a larger household. The five bedrooms are distributed across the layout, with sizes ranging from approximately 11'0"×11'8" to 12'4"×12'4".

Two bedrooms at the rear are supported by dedicated dress areas and attached toilets. The plan provides four toilets, including two 9'0"×5'0" toilets and additional toilets measuring approximately 5'0"×5'10". OTS spaces are also included near the toilet areas to support natural light and ventilation. A spacious 11'10"×16'0" lobby connects the entrance with the main living spaces and staircase.

At the front, the plan provides a dedicated parking area suitable for a car, making the layout practical for a large family. This 2800 sq ft plot floor plan is suitable for homeowners looking for a 40x70 west-facing 5 BHK ground floor house plan with multiple bedrooms, spacious common areas, dedicated parking and functional utility spaces.

Key Features of This 40X70 House Plan

Feature	Details
Plot Size	40 × 70 ft
Plot Area	2800 sq ft
Facing	West
Floors	1
Bedrooms	5
Bathrooms	4
Living Hall	21'6" × 12'0"
Dining Area	21'6" × 12'6"
Kitchen	13'8" × 12'0"
Bedroom 1	12'2" × 11'8"
Bedroom 2	11'0" × 11'8"
Bedroom 3	12'4" × 12'0"
Bedroom 4	12'4" × 12'4"
Bedroom 5	12'4" × 12'0"
Dress Areas	2
OTS	2
Lobby	11'10" × 16'0"
Car Parking	Yes
Staircase	Yes
Lift	No
Style	Modern

Planning to customize this layout? Check our Custom House plan service to modify room sizes, add extra floors, or create a personalized home design.

Want to Edit This Plan or Add 3D Elevation, Structure and MEP Drawings?

Like this plan but want some changes and adjustments? The layout can be customised according to your requirements, including:

• Custom layout changes and adjustments
• 3D front elevation designs
• Structural and working drawings
• Electrical, plumbing and drainage drawings
• Interior design concepts in 2D and 3D
• Vastu-based layout modifications, if required

Call or WhatsApp us to discuss your house plan requirements and get a customised design.

FAQs

1. Is a 40x70 ft plot suitable for a 5 BHK house?

Yes. A 40x70 ft plot provides 2,800 sq ft of plot area, giving enough space for a five-bedroom layout along with spacious living, dining, kitchen, toilets, parking and supporting areas.

2. Is this house plan suitable for a west-facing plot?

Yes. The drawing identifies the plot as west facing. If you have specific Vastu requirements, the layout can be reviewed and customised accordingly.

3. How many bedrooms are included in this 40x70 house plan?

The layout includes five bedrooms, making it suitable for larger families who need additional private rooms.

4. What are the common area sizes in this plan?

The living hall measures approximately 21'6"×12'0", while the dining area measures around 21'6"×12'6", providing generous shared spaces.

5. What is the kitchen size?

The kitchen measures approximately 13'8"×12'0", offering a spacious cooking and utility area for a larger household.

6. How many toilets are provided?

The plan includes four toilets, providing convenient facilities for the five-bedroom layout and family members.

7. Does this 5 BHK plan include dress areas?

Yes. Dedicated dress areas are provided alongside selected bedrooms, adding storage and changing space.

8. What is the purpose of the OTS spaces?

The plan includes OTS (Open-to-Sky) spaces near the toilet areas. These openings can help improve natural light and ventilation within the internal spaces.

9. Does the plan include car parking?

Yes. A dedicated parking area is provided at the front portion of the house for vehicle parking.

10. Can this 40x70 5 BHK house plan be customised?

Yes. Room sizes, internal layout, entrance, kitchen, toilets and other spaces can potentially be modified according to your requirements, site conditions, structural feasibility and applicable building regulations.
