40X30 West Facing 5BHK First Floor House Plan | 1200 Sqft Plot Floor Plan

Description

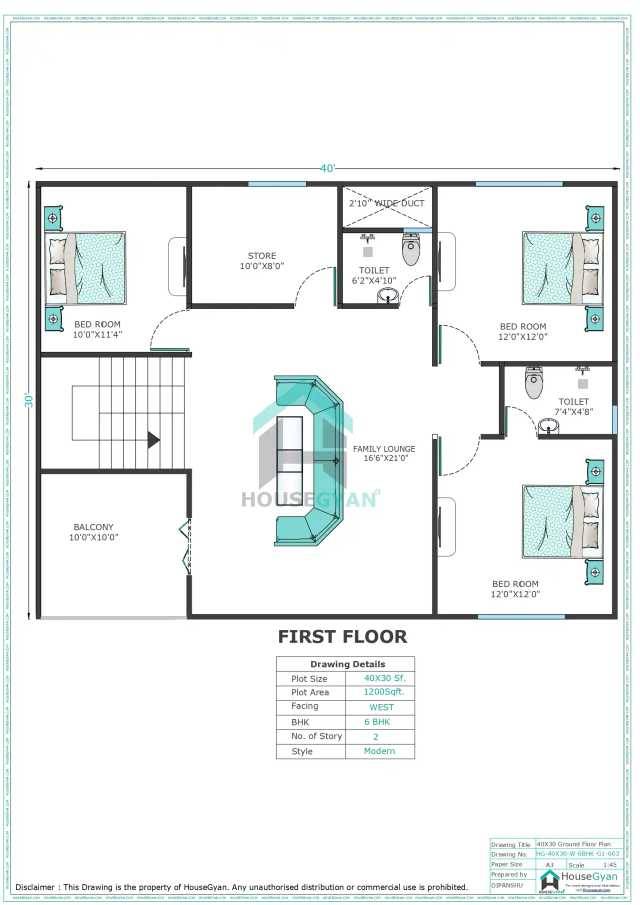

This 40x30 west facing 5 BHK first floor house plan is designed for a 1200 sq ft plot, offering a spacious layout with multiple bedrooms and well-defined family spaces. The plan features bedrooms, a living room, dining area, kitchen, toilets, pooja room, store space, staircase and a large front porch, making it suitable for a larger family. The layout includes a 16'6"×12'0" living room positioned toward the front, providing a comfortable space for family gatherings.

A separate 16'6"×8'0" dining area is placed centrally, connecting the living area with the kitchen. The kitchen measures approximately 10'0"×8'0", providing a dedicated cooking space. The bedrooms are arranged across the layout, with the left-side bedroom measuring approximately 10'0"×11'4" and the two bedrooms on the right measuring around 12'0"×12'0" each. The plan also includes a 6'2"×4'10" toilet, a 7'4"×4'8" toilet, and a 2'10" wide duct for ventilation and service requirements.

A spacious 20'0"×16'0" porch is provided at the front along with an internal staircase, creating a practical entrance and circulation arrangement. The modern layout makes effective use of the 1200 sq ft west-facing plot. Note: The drawing's title/details contain inconsistent BHK and floor information.

The visible layout shows four bedrooms, while the drawing details mention 6 BHK and the supplied title says 5 BHK First Floor. These details should be verified before publishing.

Key Features of This 40X30 House Plan

Feature	Details
Plot Size	40 × 30 ft
Plot Area	1200 sq ft
Facing	West
Floors	2
Bedrooms	5 BHK*
Bathrooms	2 shown
Living Room	16'6" × 12'0"
Dining Area	16'6" × 8'0"
Kitchen	10'0" × 8'0"
Bedroom 1	10'0" × 11'4"
Bedroom 2	12'0" × 12'0"
Bedroom 3	12'0" × 12'0"
Pooja Room	Yes
Store	Yes
Porch	20'0" × 16'0"
Internal Staircase	Yes
Lift	No
Style	Modern

Planning to customize this layout? Check our Custom House plan service to modify room sizes, add extra floors, or create a personalized home design.

Want to Edit This Plan or Add 3D Elevation, Structure and MEP Drawings?

Like this plan but want some changes? The layout can be customised according to your requirements, including:

• Custom layout changes and adjustments
• 3D front elevation designs
• Structural and working drawings
• Electrical, plumbing and drainage drawings
• Interior design concepts
• Vastu-based modifications, if required

Call or WhatsApp us to discuss your house plan requirements and get a customised design.

FAQs

1. Is a 40x30 ft plot suitable for a large family house?

Yes. A 40x30 ft plot provides 1200 sq ft of plot area, and this layout uses the available space for multiple bedrooms along with living, dining, kitchen, toilets, storage and other functional areas.

2. Is this house plan suitable for a west-facing plot?

Yes, the drawing identifies the plot as west facing. If specific Vastu requirements are needed, the layout can be reviewed and customised accordingly.

3. What is the size of the living room?

The living room measures approximately 16'6"×12'0", providing a sizeable common area for family use.

4. Does the plan have a separate dining area?

Yes. A dedicated 16'6"×8'0" dining area is provided between the living and kitchen zones.

5. What is the kitchen size?

The kitchen measures approximately 10'0"×8'0" and is positioned next to the dining area.

6. Does the plan include a pooja room?

Yes. A dedicated pooja room is shown on the left side of the central portion of the layout.

7. Is a store room included?

Yes. The plan provides a separate store room near the upper-right portion of the layout.

8. What is the size of the front porch?

The porch measures approximately 20'0"×16'0", creating a substantial entrance and parking-related space.

9. Does the plan have an internal staircase?

Yes. An internal staircase is provided on the left side of the layout, connecting the different floor levels.

10. Can this 40x30 house plan be customised?

Yes. Room sizes, circulation, entrance, kitchen arrangement and other spaces can potentially be modified according to your requirements, site conditions, structural feasibility and applicable building regulations.
