33X40 West Facing 5BHK First Floor House Plan | 1320 Sqft Plot Floor Plan

Description

This 33x40 west-facing 5 BHK duplex house plan is designed for a 1320 sq ft plot, featuring a practical two-floor layout that makes efficient use of the available space. The plan includes five bedrooms, a kitchen, dining area, living room, family lounge, multiple toilets, parking, an open terrace and a balcony.

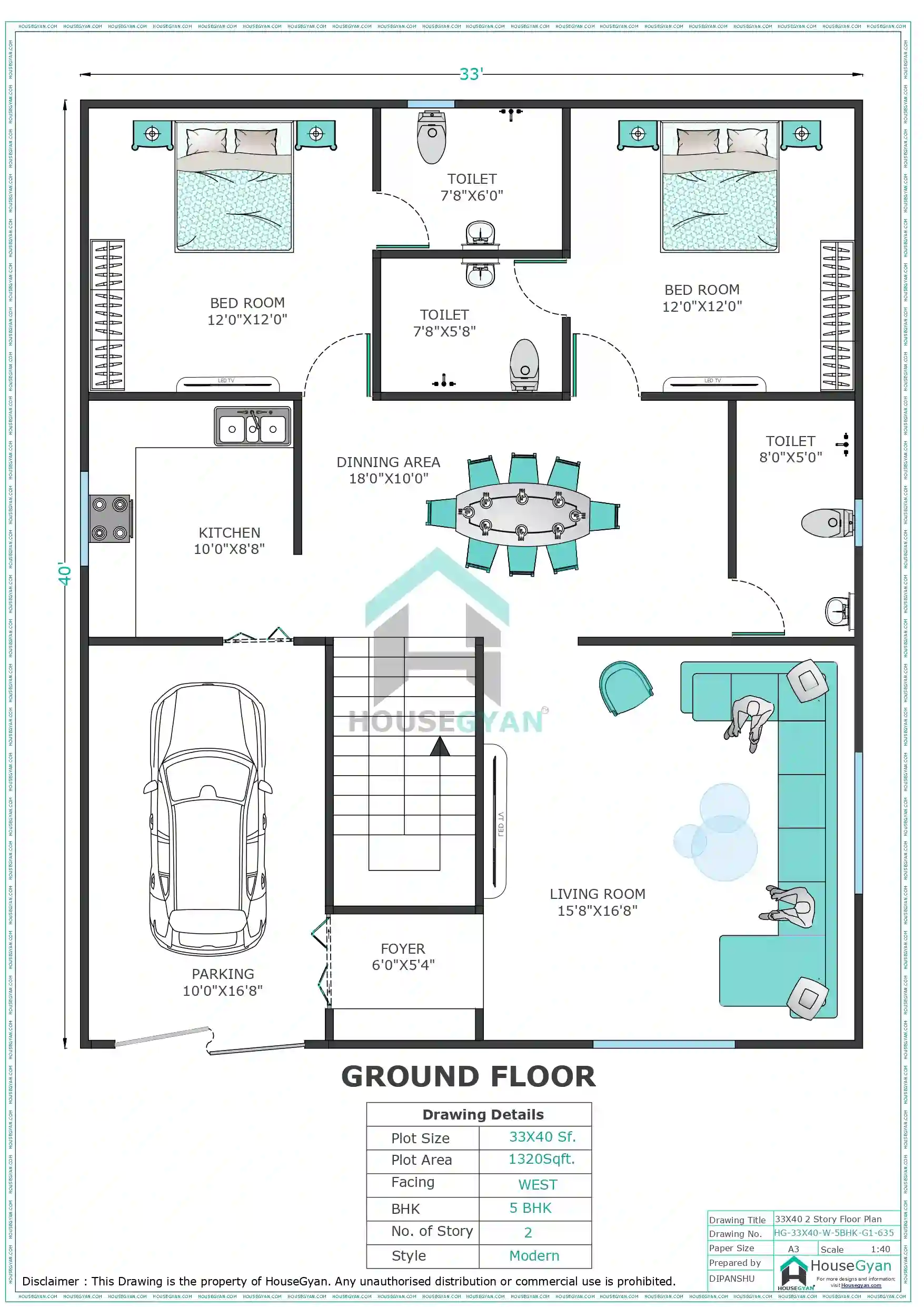

The ground floor features two bedrooms, a spacious 18'0"×10'0" dining area, a 15'8"×16'8" living room, a kitchen and a dedicated car parking area. The layout is planned to provide comfortable living spaces while maintaining convenient access between the bedrooms, dining area, kitchen and other common areas.

The ground floor includes two bedrooms, each measuring approximately 12'0"×12'0", providing comfortable private spaces for family members. Two toilets are positioned near the bedroom areas, along with an additional toilet measuring 8'0"×5'0" on the right side of the plan. The kitchen measures 10'0"×8'8" and is positioned next to the dining area for convenient meal preparation and serving.

A 10'0"×16'8" parking area is provided at the front-left portion of the ground floor, while the staircase connects the ground floor to the first floor. A 6'0"×5'4" foyer provides a defined entrance transition, and the dining area connects the kitchen with the main living spaces.

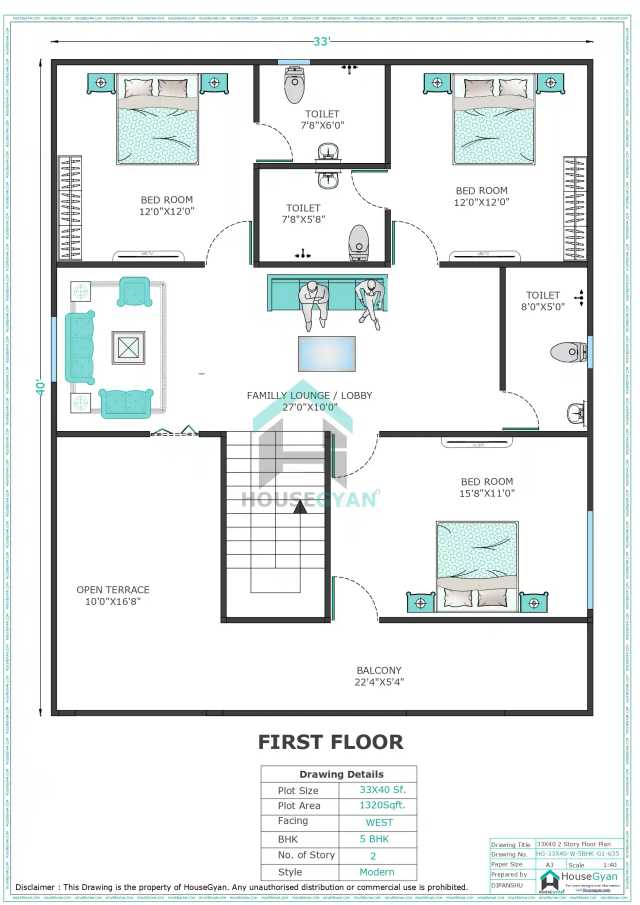

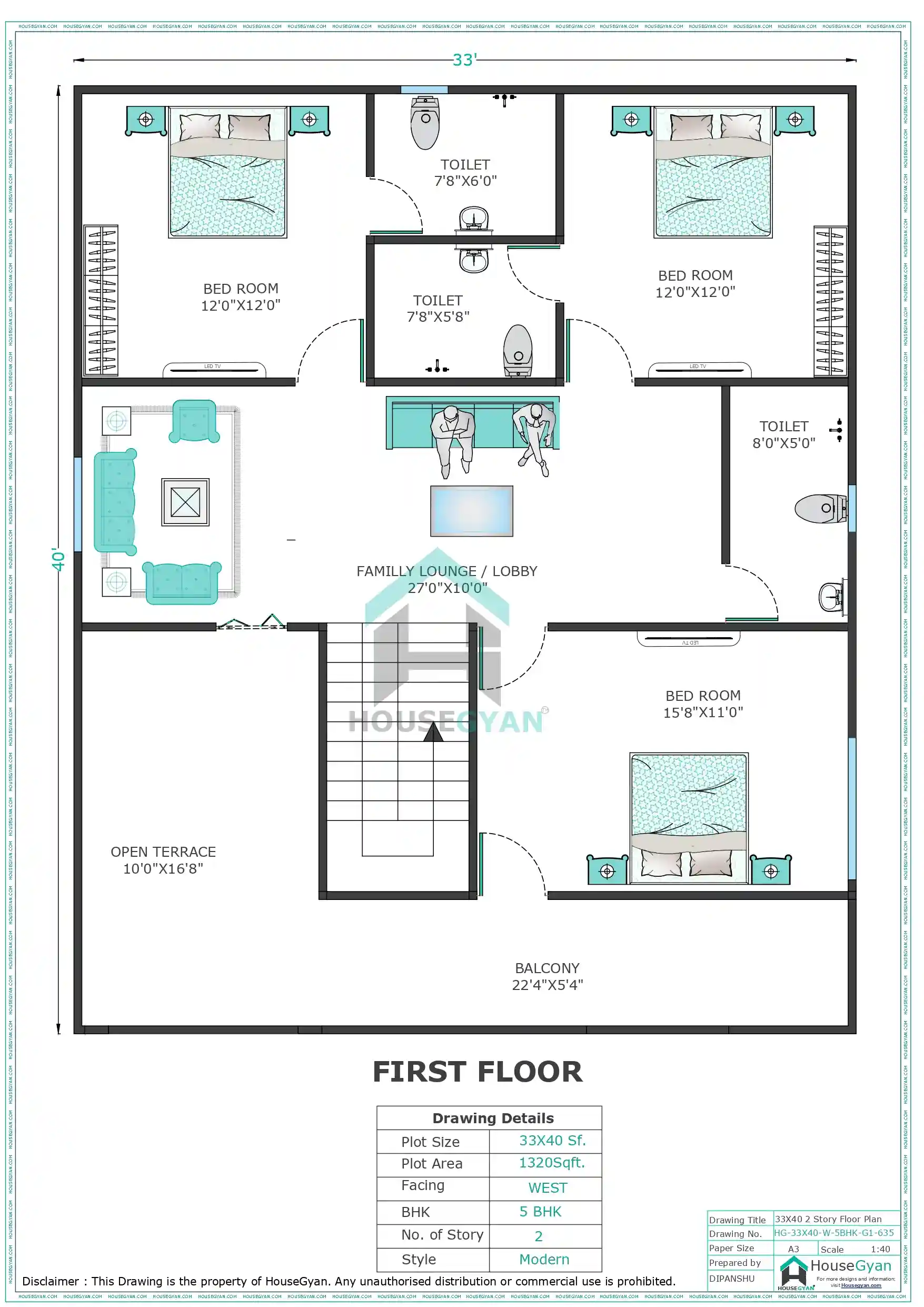

The first floor includes three bedrooms, a family lounge, an open terrace and a spacious balcony. Two bedrooms measure approximately 12'0"×12'0" each, while the third bedroom measures 15'8"×11'0". The family lounge measures 27'0"×10'0", providing a shared space for relaxation and family gatherings.

The first floor also features three toilets, including two measuring approximately 7'8"×6'0" and 7'8"×5'8", and another measuring 8'0"×5'0". An open terrace measuring 10'0"×16'8" provides additional outdoor space, while the 22'4"×5'4" balcony adds an extended area for fresh air and outdoor relaxation.

This 1320 sq ft west-facing duplex house plan is suitable for homeowners looking for a 33x40 5 BHK house plan with two floors, dedicated car parking, separate family spaces, a functional kitchen and dining area, an open terrace and a balcony.

Key Features of This 33x40 House Plan

Planning to customize this layout? Check our Custom House plan service to modify room sizes, add extra floors, or create a personalized home design.

Want to Edit This Plan or Add 3D Elevation, Structure and MEP Drawings?

Like this plan but want some changes and adjustments? The layout can be customized according to your requirements, including:

• Custom layout changes and adjustments

• 3D front elevation designs

• Structural and working drawings

• Electrical, plumbing and drainage drawings

• Interior design concepts in 2D and 3D

• Vastu-based layout modifications, if required

Call or WhatsApp us to discuss your house plan requirements and get a customized design.

FAQ About This 33x40 House Plan

1. Is a 33x40 ft plot suitable for a 5 BHK duplex house?

Yes. A 33x40 ft plot provides 1320 sq ft of plot area. This design accommodates five bedrooms across two floors, along with living spaces, a kitchen, dining area, parking, an open terrace and a balcony.

2. Is this house plan suitable for a west-facing plot?

Yes. The drawing identifies the plot as west-facing. If you have specific Vastu requirements, the layout can be reviewed and customized accordingly.

3. How many bedrooms are included in this 33x40 duplex plan?

The plan includes five bedrooms in total, with two bedrooms on the ground floor and three bedrooms on the first floor.

4. What is the kitchen size in this house plan?

The ground-floor kitchen measures approximately 10'0"×8'8" and is positioned next to the dining area for convenient access.

5. Does this 33x40 house plan include car parking?

Yes. The ground-floor drawing shows a dedicated car parking area measuring approximately 10'0"×16'8".

6. What facilities are available on the first floor?

The first floor includes three bedrooms, a family lounge, three toilets, an open terrace and a balcony.

7. Does this duplex plan include an open terrace and balcony?

Yes. The first-floor layout includes an open terrace measuring 10'0"×16'8" and a balcony measuring 22'4"×5'4".

8. Is a staircase provided in this house plan?

Yes. The staircase is located on the ground floor and connects the two floors.

9. Can this 33x40 5 BHK house plan be customized?

Yes. The layout can be reviewed for changes to room sizes, kitchen placement, staircase position, parking arrangements, front elevation, interiors and Vastu preferences, subject to site conditions and structural feasibility.

10. Is this house plan suitable for a modern family?

The two-floor layout provides separate bedrooms, shared family spaces and outdoor areas, making it a practical option for families that need multiple bedrooms and flexible living arrangements.
