33X40 West Facing 2BHK Ground Floor House Plan | 1320 Sqft Plot Floor Plan

Description

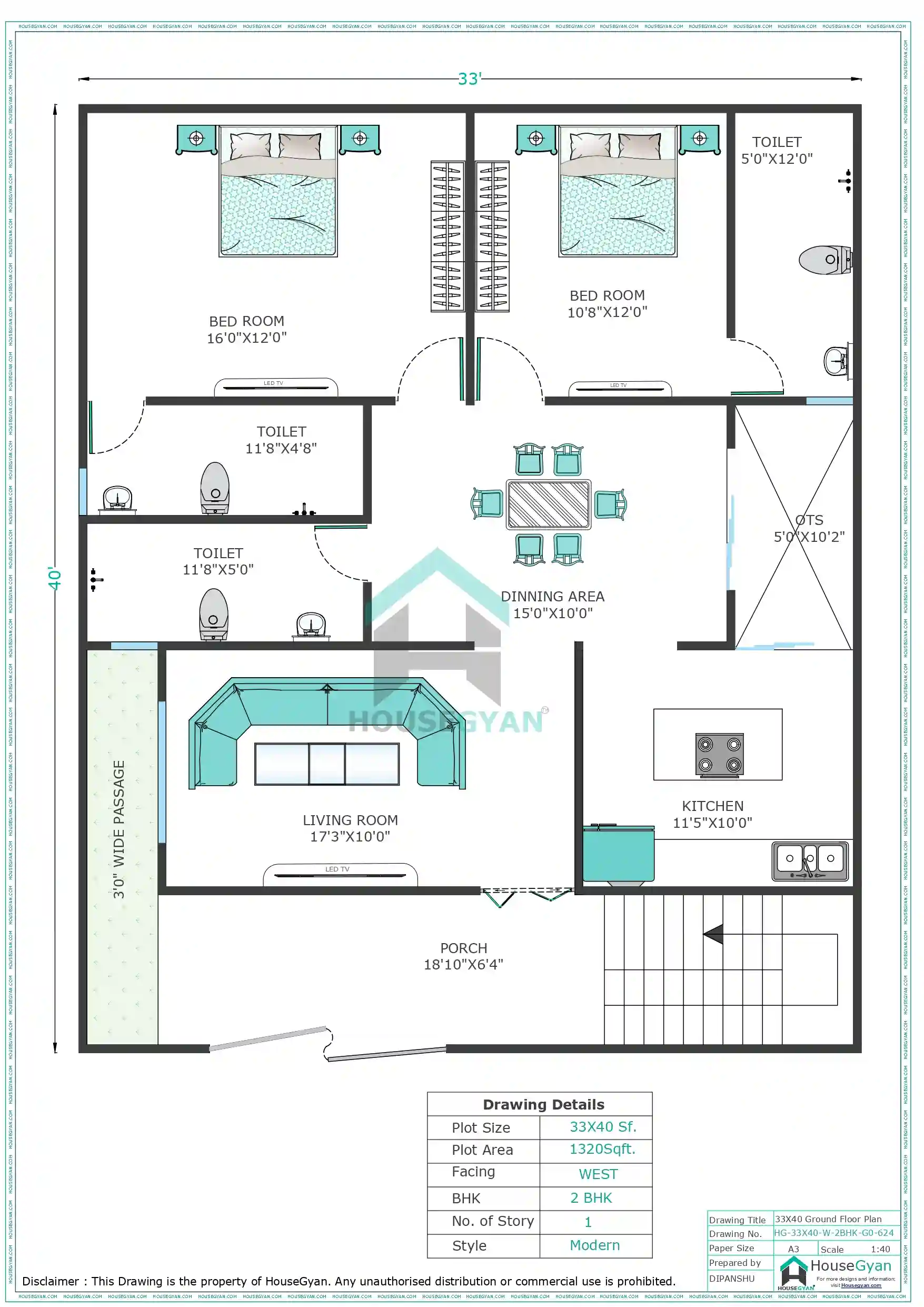

This 33x40 west-facing 2 BHK ground floor house plan is designed for a 1320 sq ft plot, offering a practical layout with spacious bedrooms, a living room, dining area, kitchen, three toilets, an OTS (Open-to-Sky) area, an internal staircase, a front porch and a side passage.

The modern single-floor layout makes efficient use of the available space while providing separate areas for family activities, cooking and privacy. The layout features a spacious 17'3"×10'0" living room in the front portion of the house, providing a comfortable common area for family gatherings and entertaining guests. A separate 15'0"×10'0" dining area is positioned centrally, connecting the bedrooms and kitchen while providing space for a dining table.

The plan includes two bedrooms. The first bedroom measures 16'0"×12'0", while the second bedroom measures 10'8"×12'0". Both bedrooms are positioned along the rear portion of the layout and include space for beds and storage, offering separate private areas for family members.

The kitchen measures approximately 11'5"×10'0" and is located toward the front-right side of the house. Its arrangement includes space for a cooking counter and sink. The central dining area provides convenient access to the kitchen, making everyday meal preparation and serving more practical. Three toilets are included in this house plan.

The dimensions shown are approximately 5'0"×12'0", 11'8"×4'8" and 11'8"×5'0". These facilities are distributed across the layout to provide convenient access from different parts of the home. An OTS area measuring 5'0"×10'2" is positioned near the right-side toilet and kitchen zone, helping support natural light and ventilation in the internal spaces.

A front porch measuring 18'10"×6'4" provides a defined entrance area to the house. The plan also includes a 3'0"-wide side passage along the left side, offering additional circulation space. An internal staircase is positioned toward the front-right portion of the layout, providing access to an upper floor if the structure is designed for future expansion.

This 1320 sq ft west-facing house plan is suitable for homeowners looking for a 33x40 2 BHK ground floor house plan with two bedrooms, three toilets, a separate living and dining arrangement, a practical kitchen layout, an OTS area and a staircase for potential future expansion.

Key Features of This 33 x 40 House Plan

Planning to customize this layout? Check our Custom House plan service to modify room sizes, add extra floors, or create a personalized home design.

Want to Edit This Plan or Add 3D Elevation, Structure and MEP Drawings?

Like this plan but want some changes and adjustments? The layout can be customised according to your requirements, including:

• Custom layout changes and adjustments

• 3D front elevation designs

• Structural and working drawings

• Electrical, plumbing and drainage drawings

• Interior design concepts in 2D and 3D

• Vastu-based layout modifications, if required

Call or WhatsApp HouseGyan to discuss your house plan requirements and get a customised design.

FAQ About This 33x40 House Plan

1. What is the plot size of this 33x40 house plan?

This house plan is designed for a 33 × 40 ft plot, providing a total plot area of 1320 sq ft.

2. Is this a west-facing house plan?

Yes. The drawing identifies the plot as west facing. If you have specific Vastu requirements, the layout can be reviewed and customised accordingly.

3. How many bedrooms are included in this 33x40 house plan?

The plan includes two bedrooms. Bedroom 1 measures 16'0" × 12'0", while Bedroom 2 measures 10'8" × 12'0".

4. What is the size of the living room?

The living room measures approximately 17'3" × 10'0", providing space for a sofa arrangement, television unit and everyday family activities.

5. Does this house plan have a separate dining area?

Yes. A dedicated 15'0" × 10'0" dining area is positioned centrally in the layout, providing space for a dining table and convenient access to the kitchen.

6. What is the kitchen size in this 33x40 house plan?

The kitchen measures approximately 11'5" × 10'0". It includes space for a cooking counter and sink, with the dining area located nearby.

7. How many toilets are included in this 2 BHK house plan?

The plan includes three toilets, measuring approximately 5'0" × 12'0", 11'8" × 4'8" and 11'8" × 5'0", as marked in the drawing.

8. What is the purpose of the OTS area?

The plan includes a 5'0" × 10'2" OTS (Open-to-Sky) area near the kitchen and toilet zone. It can help bring natural light and ventilation into adjoining internal spaces, depending on the final construction.

9. Does this 33x40 house plan include a staircase?

Yes. An internal staircase is provided toward the front-right portion of the layout. It can support access to an upper floor, subject to appropriate structural planning and approval.

10. Can this 33x40 west-facing house plan be customised?

Yes. The plan can be customised according to your family’s requirements, site conditions and design preferences. Options may include room layout changes, 3D front elevation, structural drawings, electrical and plumbing layouts, interior design and Vastu-related modifications.
