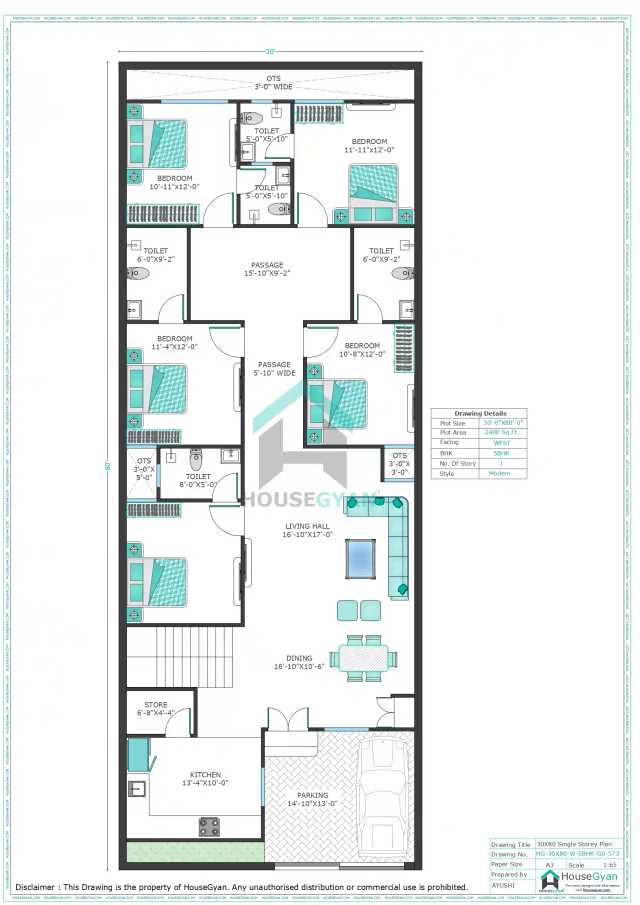

30X80 West Facing 5BHK Ground Floor House Plan | 2400 Sqft Plot Floor Plan

Description

This 30X80 west-facing 5BHK ground floor house plan is designed for a spacious 2400 Sq.Ft. plot with a modern single-storey layout. The plan accommodates five bedrooms, making it suitable for large families who need multiple private rooms within one floor. The layout includes a spacious living hall measuring 16'-10"X17'-0", a dining area of 16'-10"X10'-6", and a dedicated kitchen measuring 13'-4"X10'-0".

Multiple toilets are distributed across the plan for convenient access, while OTS areas are provided at different locations. A store measuring 6'-8"X4'-4" is positioned near the kitchen for additional storage. The front portion includes an entrance foyer and a dedicated parking area measuring 14'-10"X13'-0". The plan also features passages connecting the bedroom and common areas, along with dress spaces attached to selected bedrooms.

Overall, this modern 30X80 house plan makes effective use of the long rectangular plot while providing well-defined residential, circulation, utility, and parking spaces on a single ground floor.

Key Features of This 30X80 House Plan

Feature	Details
Plot Size	30X80 Sq.Ft.
Plot Area	2400 Sq.Ft.
Facing	West
BHK	5BHK
No. of Storey	1
Style	Modern
Living Hall	16'-10"X17'-0"
Dining Area	16'-10"X10'-6"
Kitchen	13'-4"X10'-0"
Parking	14'-10"X13'-0"
Store	6'-8"X4'-4"
Bedrooms	5
OTS	Multiple OTS areas
Toilets	Multiple toilets
Entrance	Entrance foyer
Outdoor Space	OTS areas

Planning to customize this layout? Check our Custom House plan service to modify room sizes, add extra floors, or create a personalized home design.

FAQs

1. What are the plot dimensions of this 30X80 west-facing house plan?

This house plan is designed for a 30X80 plot, providing a total plot area of 2400 square feet. The layout uses the long rectangular site to accommodate five bedrooms, multiple toilets, living and dining spaces, kitchen, parking, store, passages, and OTS areas within a single modern ground-floor arrangement for comfortable family living and daily household activities.

2. Is this 30X80 house plan west-facing?

Yes, the 30X80 house plan is west-facing, as specified in the drawing details. The layout is organized on a 30-foot by 80-foot plot with the entrance and parking positioned toward the front. This west-facing configuration provides a practical arrangement of residential spaces while maintaining a clear circulation path through the single-storey ground-floor plan for family use.

3. How many bedrooms are included in this 30X80 house plan?

This ground-floor house plan includes five bedrooms, making it a suitable 5BHK layout for families requiring multiple private rooms. The bedrooms are distributed across the plan, with two bedrooms toward the upper portion, two around the central passage areas, and another bedroom toward the lower portion. The drawing also shows toilets and dress spaces for added convenience.

4. What is the total plot area of this 30X80 5BHK plan?

The total plot area of this 30X80 house plan is 2400 square feet. The drawing lists the plot size as 30X80 feet and the plot area as 2400 Sq.Ft. The layout makes use of this rectangular plot for a single-storey 5BHK arrangement with bedrooms, common spaces, kitchen, parking, store, passages, toilets, and OTS areas.

5. Does this plan include parking space?

Yes, the plan includes a dedicated parking area near the front entrance. The parking space is marked 14'-10"X13'-0" in the drawing and is positioned beside the entrance foyer. Its location provides direct access to the house while keeping the vehicle area separate from the main living and dining spaces within the 30X80 plot for convenience.

6. What common areas are provided in this 30X80 floor plan?

The plan provides several common areas for daily family activities and movement. These include an entrance foyer, living hall, dining area, central passages, kitchen, parking, and a store. The living hall is marked 16'-10"X17'-0", while the dining area measures 16'-10"X10'-6", offering clearly defined shared spaces within the ground-floor home layout for residents.

7. Does the 30X80 house plan have multiple toilets?

Yes, the drawing shows multiple toilets distributed throughout the house. Toilets are provided near the upper bedrooms and additional bedroom areas, helping improve convenience and privacy for occupants. The plan also includes OTS spaces near some toilet and bedroom zones. This arrangement supports a practical 5BHK single-storey home with several private and shared facilities for residents.

8. Is there a kitchen in this 30X80 5BHK house plan?

Yes, the plan includes a dedicated kitchen positioned toward the lower-left portion of the house. The kitchen is labeled 13'-4"X10'-0" and is connected to the main circulation area. A store measuring 6'-8"X4'-4" is also shown nearby, providing additional space for household storage and supporting the functional organization of the kitchen zone for daily use.

9. Does this house plan include OTS areas?

Yes, multiple OTS areas are shown in the 30X80 floor plan. An OTS measuring 3'-0" wide appears along the upper portion, while smaller OTS spaces are also marked near other bedroom and toilet areas. These openings are incorporated into the layout as designated spaces, contributing to the overall planning and ventilation-related arrangement of the single-storey home.

10. What style is specified for this 30X80 house plan?

The drawing specifies a modern style for this 30X80 west-facing house plan. The single-storey layout combines a contemporary room arrangement with clearly marked residential spaces, including five bedrooms, living hall, dining area, kitchen, parking, store, passages, toilets, and OTS areas. The design focuses on accommodating multiple functional spaces within the 2400-square-foot residential plot efficiently.
