30X80 West Facing 3BHK Ground Floor House Plan | 2400 Sqft Plot Floor Plan

Description

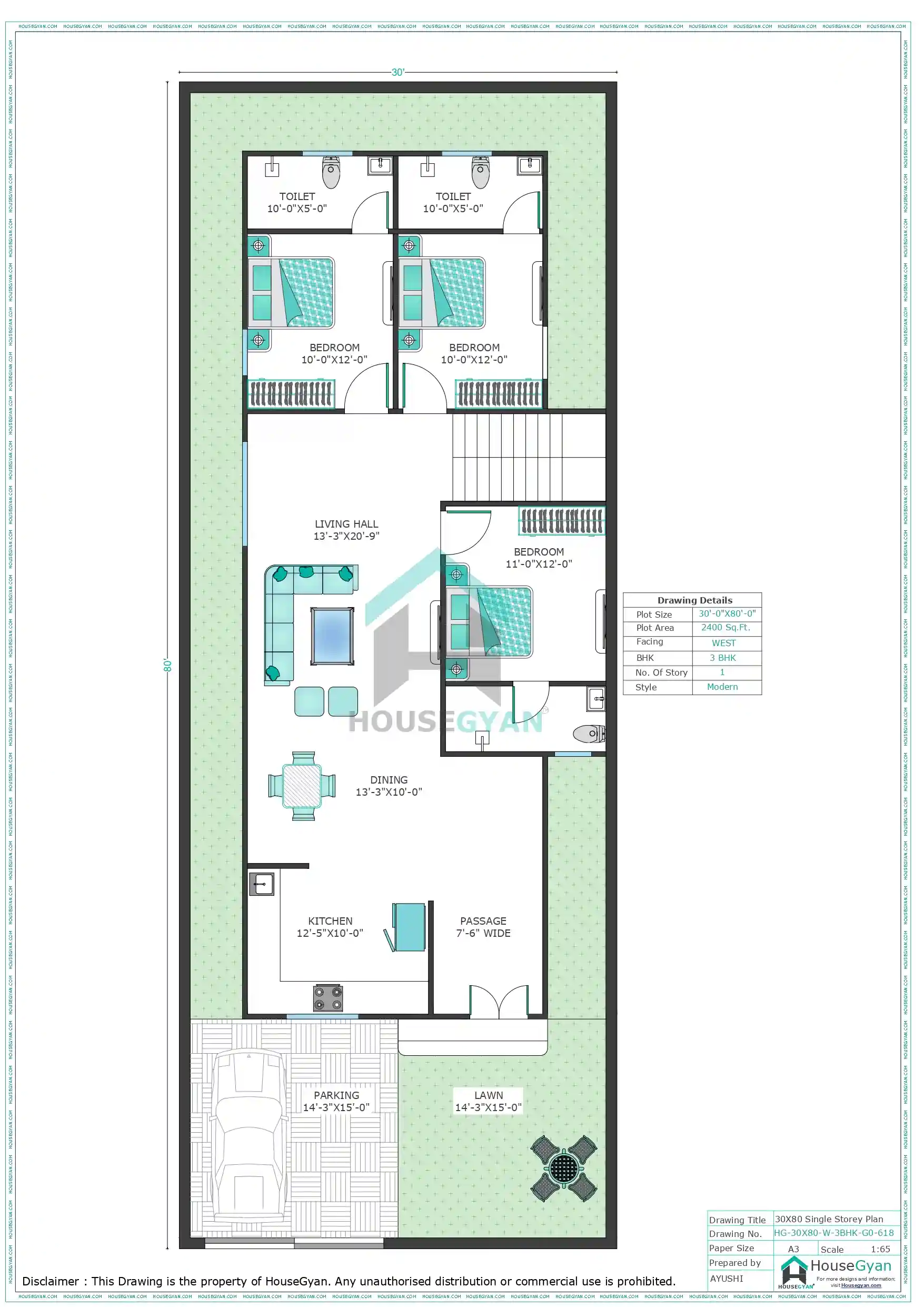

This 30x80 west-facing 3 BHK house plan is designed for a spacious 2,400 sq ft plot, offering a practical single-floor layout with three bedrooms, dedicated parking, a lawn and well-defined common areas. The plan makes effective use of the long 80 ft plot while maintaining comfortable room sizes and clear movement between spaces.

The 13'3"×20'9" living hall provides a generous family area, while the 13'3"×10'0" dining area is positioned conveniently between the living space and kitchen. The 12'5"×10'0" kitchen is placed near the dining area, with a 7'6" wide passage providing access to the entrance. The plan includes two 10'×12' bedrooms at the rear, each paired with a 10'×5' toilet, while the third bedroom measures 11'×12' and has its own attached toilet.

A staircase is also incorporated into the bedroom zone for convenient access. At the front, the plan provides 14'3"×15'0" parking and an equally sized 14'3"×15'0" lawn, giving the entrance a balanced combination of vehicle and outdoor space.

Key Features of This 30X80 House Plan

Feature	Details
Plot Size	30 × 80 ft
Plot Area	2,400 sq ft
Facing	West
Floors	1
Bedrooms	3 BHK
Living Hall	13'3" × 20'9"
Dining Area	13'3" × 10'0"
Kitchen	12'5" × 10'0"
Bedroom 1	10' × 12'
Bedroom 2	10' × 12'
Bedroom 3	11' × 12'
Rear Toilets	10' × 5' each
Passage Width	7'6"
Parking	14'3" × 15'0"
Lawn	14'3" × 15'0"
Style	Modern

Planning to customize this layout? Check our Custom House plan service to modify room sizes, add extra floors, or create a personalized home design.

FAQs

1. What is the plot size of this 3 BHK house plan?

This plan is designed for a 30×80 ft west-facing plot, covering a total area of 2,400 sq ft.

2. How many bedrooms are included in this 30×80 house plan?

The layout provides 3 bedrooms. Two bedrooms measure 10×12 ft, while the third bedroom measures approximately 11×12 ft.

3. Does this plan include attached toilets?

Yes. The two rear bedrooms are provided with 10×5 ft toilet spaces, while the third bedroom also has a dedicated toilet area.

4. How large is the living hall?

The living hall measures approximately 13'3"×20'9", making it one of the largest spaces in the house and suitable for a sizeable seating arrangement.

5. Where is the kitchen located in this 30×80 plan?

The 12'5"×10'0" kitchen is positioned beside the dining area, allowing convenient access between the cooking and dining spaces.

6. Is there dedicated parking on the plot?

Yes. A 14'3"×15'0" parking area is provided at the front of the house for vehicle parking.

7. Does the house plan include a lawn?

Yes. A 14'3"×15'0" lawn is provided alongside the parking area, creating an outdoor green space near the entrance.

8. Is this a single-floor house plan?

Yes. The drawing is marked as a single-storey 3 BHK house plan, with all primary living spaces arranged on the ground floor.

9. Is this plan suitable for a west-facing plot?

Yes. The plan is specifically designed for a west-facing 30×80 ft plot. Any Vastu-specific changes should be evaluated according to the site's exact orientation and local requirements.

10. Can this 30×80 3 BHK house plan be customised?

Yes. The room sizes, internal layout, parking, lawn, entrance and other elements can be modified according to the site dimensions, family requirements, structural needs and applicable local building regulations.

After finalizing your floor plan, you can estimate your project budget using our Construction Cost Calculator before starting construction.
