23X40 West Facing 4BHK First Floor House Plan | 920 Sqft Plot Floor Plan

Description

This 23x40 west facing 4 BHK house plan is a modern two-storey home designed for a 920 sq ft plot, with two bedrooms planned across the ground floor and first floor. The layout makes efficient use of the narrow plot while providing separate living, dining, kitchen, bedroom and outdoor spaces.

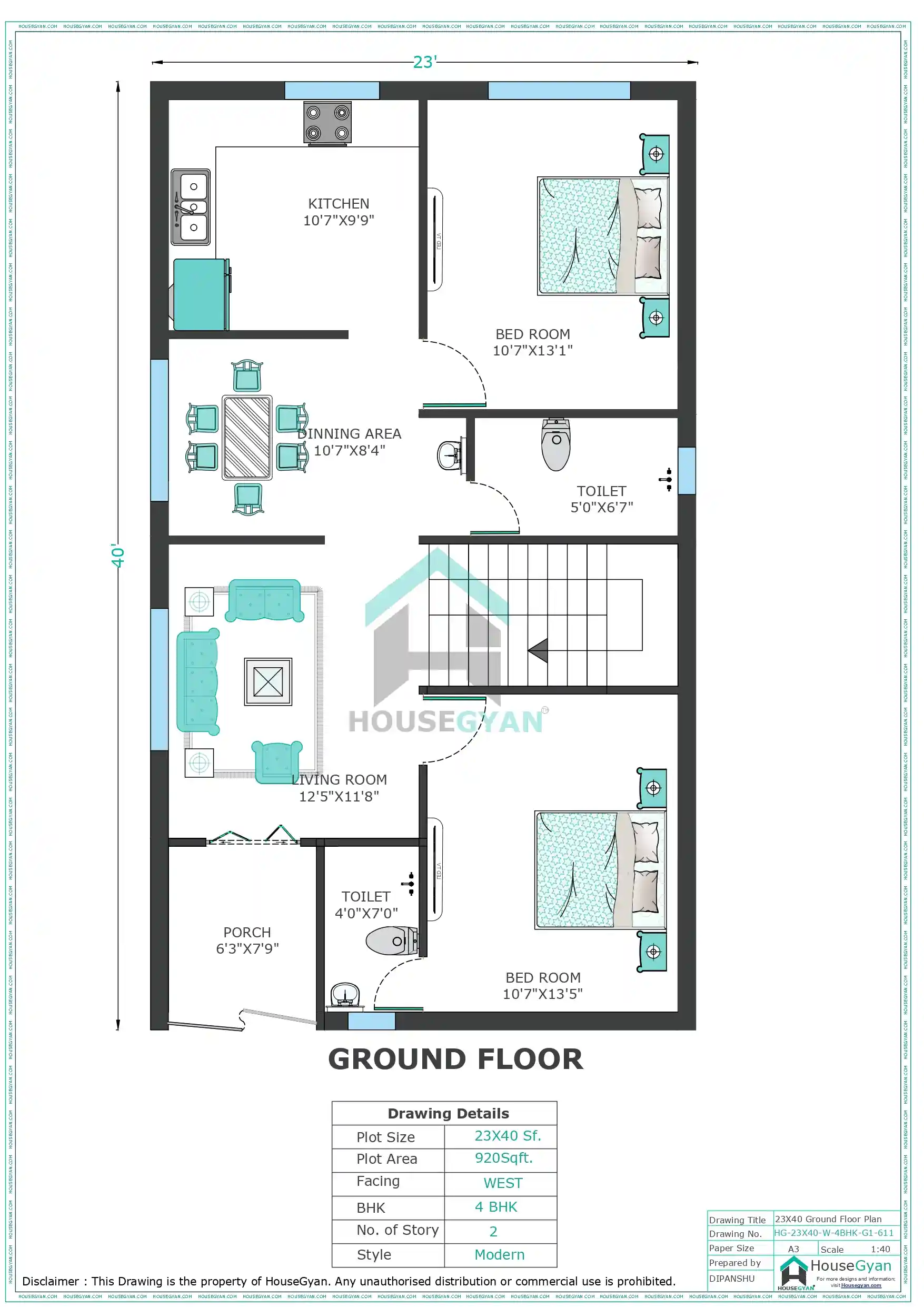

The ground floor includes a 12'5"×11'8" living room, a 10'7"×8'4" dining area and a 10'7"×9'9" kitchen. Two bedrooms are provided, both measuring approximately 10'7"×13'1" and 10'7"×13'5". The floor also has two toilets, an internal staircase and a 6'3"×7'9" porch.

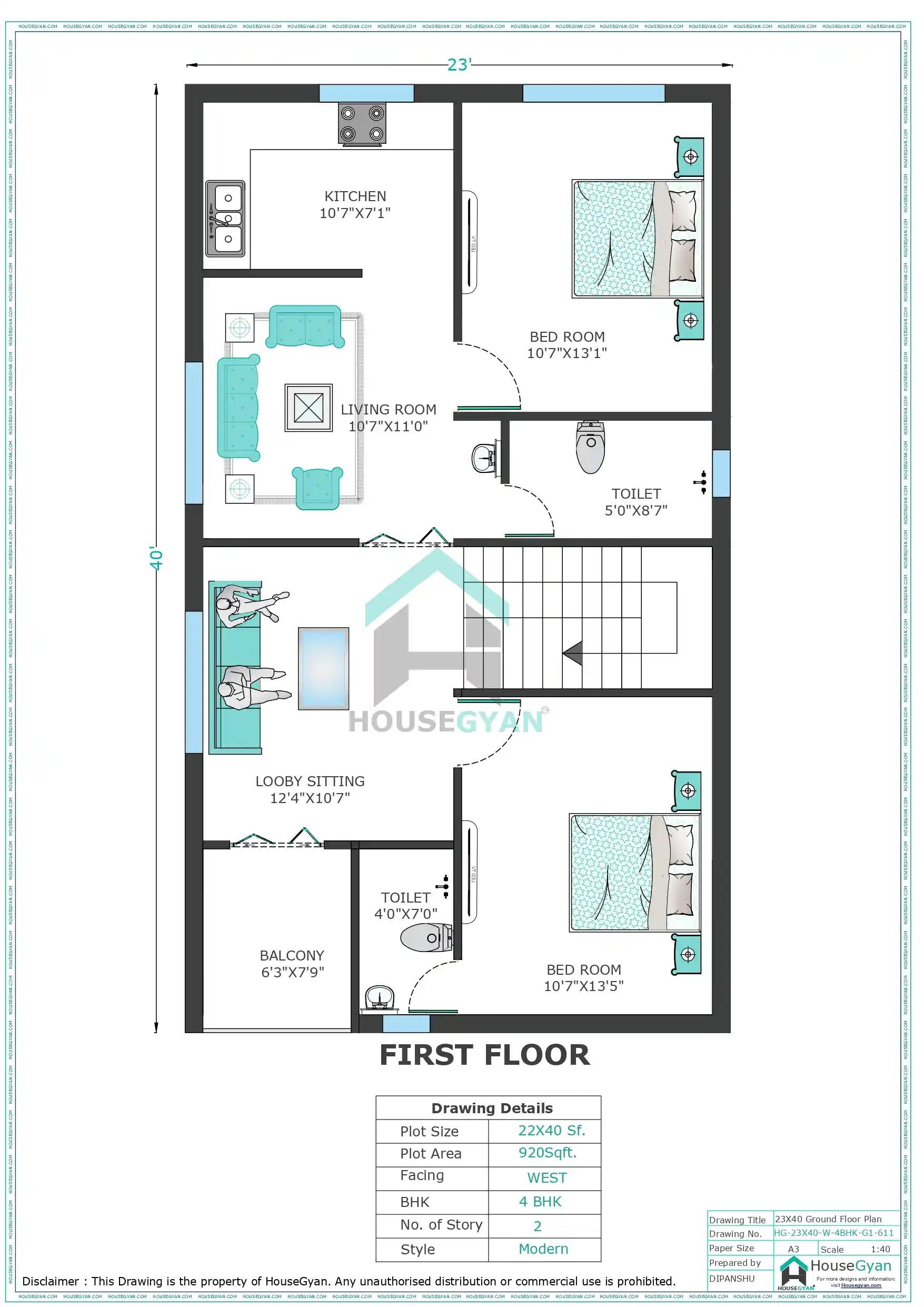

The first floor adds two more bedrooms, making the overall home a 4 BHK. One bedroom measures approximately 10'7"×13'1", while the second measures 10'7"×13'5". A 10'7"×11'0" living room, kitchen, toilet, lobby sitting area and a 6'3"×7'9" balcony are also provided. With two bedrooms on each floor, this 23x40 house plan offers useful separation between family and private spaces.

The internal staircase connects both levels, while the first-floor balcony adds an outdoor sitting area. This 920 sq ft west-facing 4 BHK house plan is suitable for families looking for a compact two-storey home with four bedrooms and separate living spaces on both floors.

Key Features of This 23x40 House Plan

Feature	Details
Plot Size	23 × 40 ft
Plot Area	920 sq ft
Facing	West
Floors	2
Bedrooms	4
Bathrooms	3 shown
Ground Floor Living Room	12'5" × 11'8"
Ground Floor Dining Area	10'7" × 8'4"
Ground Floor Kitchen	10'7" × 9'9"
First Floor Living Room	10'7" × 11'0"
First Floor Kitchen	10'7" × 7'1"
Bedroom 1	10'7" × 13'1"
Bedroom 2	10'7" × 13'5"
First Floor Lobby Sitting	12'4" × 10'7"
Balcony	6'3" × 7'9"
Porch	6'3" × 7'9"
Internal Staircase	Yes
Lift	No
Style	Modern

Planning to customize this layout? Check our Custom House plan service to modify room sizes, add extra floors, or create a personalized home design.

Want to Edit This Plan or Add 3D Elevation, Structure and MEP Drawings?

Like this plan but want some changes and adjustments? The layout can be customised according to your requirements, including:

• Custom layout changes and adjustments
• 3D front elevation designs
• Structural and working drawings
• Electrical, plumbing and drainage drawings
• Interior design concepts in 2D and 3D
• Vastu-based layout modifications, if required

Call or WhatsApp us to discuss your house plan requirements and get a customised design.

FAQ About This 23x40 House Plan

1. Is a 23x40 ft plot suitable for a 4 BHK house?

Yes. A 23x40 ft plot provides 920 sq ft of plot area, and this two-storey layout distributes four bedrooms across the ground and first floors to make better use of the available space.

2. Is this house plan suitable for a west-facing plot?

Yes. The drawing identifies the property as west facing. If specific Vastu requirements are needed, the layout can be reviewed and customised accordingly.

3. How are the four bedrooms arranged?

The plan provides two bedrooms on the ground floor and two bedrooms on the first floor, creating a four-bedroom configuration across the two levels.

4. What are the bedroom sizes?

The bedrooms shown are approximately 10'7"×13'1" and 10'7"×13'5". Similar-sized bedrooms are provided across the two floors.

5. Does the ground floor have a separate dining area?

Yes. The ground floor includes a dedicated 10'7"×8'4" dining area positioned next to the kitchen and living room.

6. Does the first floor have a living area?

Yes. The first floor includes a 10'7"×11'0" living room along with a separate 12'4"×10'7" lobby sitting area.

7. Does the plan include a balcony?

Yes. A 6'3"×7'9" balcony is provided on the first floor, offering an additional semi-open space.

8. How many kitchens are included?

A kitchen is provided on both floors. The ground-floor kitchen measures approximately 10'7"×9'9", while the first-floor kitchen measures approximately 10'7"×7'1".

9. Does this 4 BHK plan have an internal staircase?

Yes. An internal staircase connects the ground and first floors, allowing convenient movement between the two levels.

10. Can this 23x40 4 BHK house plan be customised?

Yes. Room sizes, kitchen arrangement, staircase placement, entrance, balcony and other spaces can potentially be modified according to your requirements, site conditions, structural feasibility and applicable building regulations.
