19X30 East Facing 1BHK Ground Floor House Plan | 570 Sqft Plot Floor Plan

Description

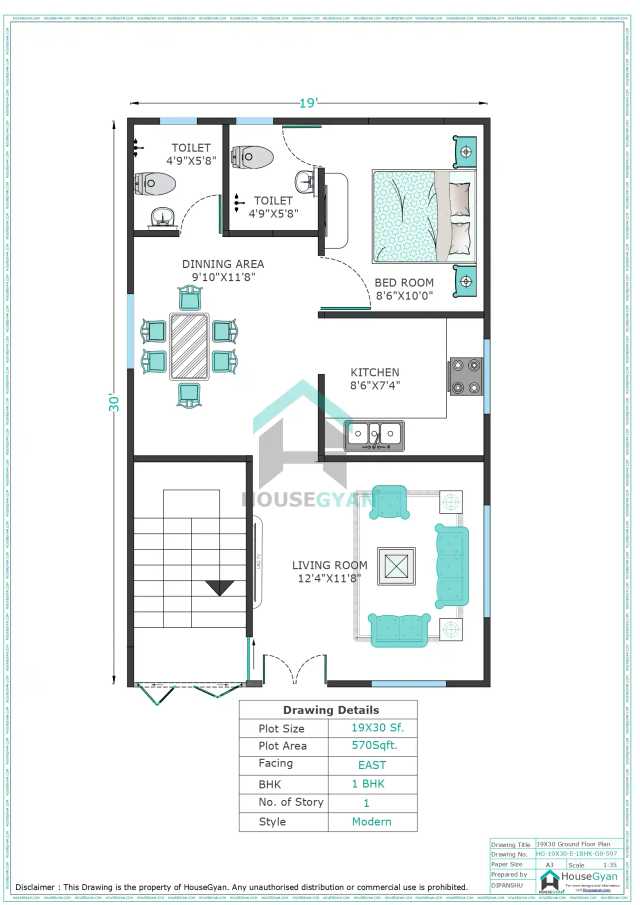

This 19X30 East Facing 1BHK Ground Floor House Plan is designed for a 570 sq ft plot with a modern single-storey layout. The plan includes one bedroom, a living room, dining area, kitchen, two toilets and a staircase. The 8'6" × 10'0" bedroom is placed towards the upper-right portion of the layout, while the 12'4" × 11'8" living room is positioned towards the front.

A 9'10" × 11'8" dining area occupies the central portion of the house, providing a dedicated space for dining. The 8'6" × 7'4" kitchen is located between the dining and living areas. Two 4'9" × 5'8" toilets are provided near the bedroom and dining area. A staircase is also included along the left side. According to the drawing details, the plan has a 19×30 ft plot size, 570 sq ft plot area, East facing, 1BHK configuration, one storey and modern style.

Key Features of This 19X30 House Plan

Planning to customize this layout? Check our Custom House plan service to modify room sizes, add extra floors, or create a personalized home design.

FAQs

1. What is the plot size of this 19X30 East-facing house plan?

The plot size shown in this house plan is 19×30 feet, providing a total plot area of 570 sq ft. The design is a modern, single-storey 1BHK house plan with an East-facing orientation.

2. Is this a 19X30 East-facing 1BHK house plan?

Yes, this is an East-facing 19×30 1BHK house plan. The drawing details specify a 19×30 ft plot, 570 sq ft plot area, 1BHK configuration, one storey and modern style.

3. How many bedrooms are included in this floor plan?

This floor plan includes one bedroom, making it a 1BHK house design. The bedroom is positioned towards the upper-right portion of the layout and measures 8'6" × 10'0".

4. What is the size of the living room?

The living room measures 12'4" × 11'8". It is located towards the front portion of the house and includes a seating arrangement, providing a dedicated area for relaxation and family activities.

5. What is the size of the dining area?

The dining area measures 9'10" × 11'8". It is positioned in the central portion of the house and provides enough space for the dining table and chairs shown in the floor plan.

6. What is the kitchen size in this 19X30 floor plan?

The kitchen measures 8'6" × 7'4". It is positioned between the dining and living areas and includes cooking and sink provisions as shown in the drawing.

7. How many toilets are provided in this 1BHK house plan?

The plan includes two toilets, and both are marked with dimensions of 4'9" × 5'8". They are positioned in the upper section of the layout near the bedroom and dining area.

8. Does this 19X30 house plan include a staircase?

Yes, a staircase is provided along the left side of the floor plan. It is positioned next to the living room and provides access to the upper level if required.

9. What is the style of this East-facing house plan?

The drawing details specify the style as Modern. The compact layout incorporates a bedroom, living room, dining area, kitchen, two toilets and a staircase within the 570 sq ft plot.

10. Is this a single-storey 19X30 house plan?

Yes. The drawing specifies No. of Storey: 1, making it a single-storey ground-floor plan. It is designed as a modern East-facing 1BHK house plan for a 19×30 ft, 570 sq ft plot.
