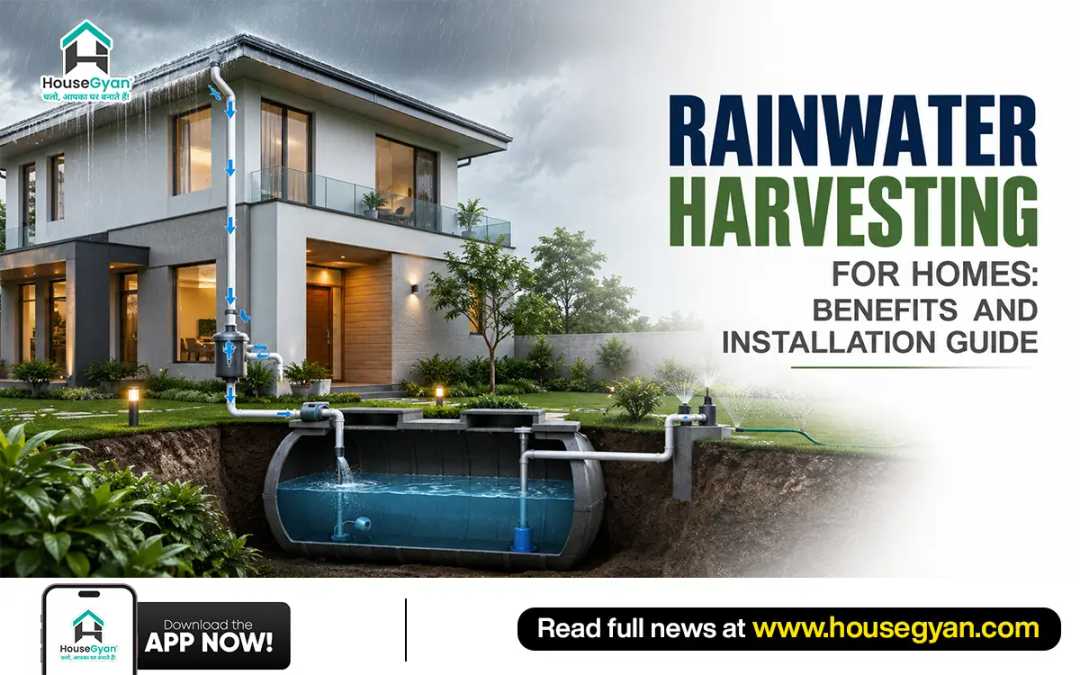

Rainwater Harvesting for Homes: Benefits and Installation Guide

What Is Rainwater Harvesting?

Rainwater harvesting for homes involves collecting, purifying, and storing rainwater for reuse. Rainwater is collected from rooftops or other surfaces and stored in tanks or filtered into the soil where it replenishes groundwater rather than draining to impervious surfaces.
A home rainwater harvesting system enables households to utilize the rainwater for washing vehicles, cleaning, irrigation, and other non-potable uses. In some cases, rainwater collected can also be made safe for use as drinking water after filtration and treatment. Water conservation is the best solution to meet the increased demand of water in India, and rainwater harvesting is both viable and sustainable.

Why Rainwater Harvesting Is Important

The annual average rainfall in India is approximately 1,170 mm and despite it many places suffer from water shortage during the summer season. This is generally because a significant amount of rainwater is lost without being retained or used.
A rainwater collection system helps reduce dependence on municipal water supplies and groundwater.
It also helps to reduce water bills, groundwater recharge, mitigate urban floods and provide water supply during dry months. As climate patterns become more unpredictable, rainwater harvesting offers homeowners an effective way to manage water resources responsibly while protecting the environment.

Types of Rainwater Harvesting Systems

1. Rooftop Rainwater Harvesting

• Captures 80-90% of rainwater from the roof via gutters and pipes

• A 1,000 sq ft roof can collect thousands of litres yearly.

• Suitable for homes, villas, small buildings.

2. Surface Runoff Harvesting

• Harvests rainwater from roads, gardens, and open spaces.

• Minimise water waste and urban floods.

• Useful for irrigation and groundwater recharge.

3. Groundwater Recharge System

• Directs filtered rain water into pits, trenches and borewells.

• Helps improve falling groundwater levels.

• Best for water-scarce areas.

4. Storage Tank System

• Collects rainwater in tanks ranging from 500 litres to 10,000 litres or more.

• Good for cleaning, gardening, and flushing the toilet.

• Lessens' reliance on boarded water or tank water.

How to Install a Rainwater Harvesting System at Home

1. Record an observation of the Roof Catchment Area

• Calculate using measurements in square feet of roof surface.

• The bigger the roof area, the more rain water can be collected.

• Take a look at local rainfall to estimate water collected in a year.

2. Install Gutters and Downpipes

• Fix gutters along the roof edges.

• Use downpipes to carry rainwater to the filter.

• Maintain the correct slope of the pipe for uniform water flow.

3. Add a First Flush Diverter

• Dust, leaves, and bird droppings are normal ingredients of the first rainwater.

• A first flush diverter filters out this dirty water.

• Reduces rainwater pollution during storage.

4. Install a Filtration Unit

• Fill with mesh or charcoal or sand/gravel filter.

• Filters take out dirt, leaves, and other fine materials.

• Clean filters result in cleaner water and longer tank life.

5. Set Up a Storage Tank or Recharge Pit

• Choose a tank according to the family's water requirement.

• Home tanks go from 500 to 10,000+ litres.

• Recharge pit to support the groundwater.

6. Connect the Distribution System

• Use stored water for garden taps, cleaning or toilet flushing.

• If water is necessary for drinking, provide additional purification.

• Check all connections to avoid leakage.

Components of a Rainwater Harvesting System

1. Catchment Area

• It is the roof and surface area from which rainwater is collected.

• Roofs, if cleaned, will collect better water.

• The larger the catchment area, the more rainwater that falls.

2. Gutters and Pipes

• Water is gathered from edges of roofs and directed into gutters.

• Water from pipes is directed to the filter or tank.

• Correct pipe lying area minimises leakage and water losses.

3. Filter Unit

• Cleans leaves, dust, sand and dirt.

• Most filters employ mesh, gravel, sand and charcoal.

• Filters are cleaned which improves water quality.

4. Storage Tank

• Water collected from rainfall was stored for reuse.

• Plastic, concrete, fiberglass, and steel are among the common materials.

• Water used for cleaning, gardening and flushing.

5. Recharge Pit

• Sends filtered rainwater into the ground.

• Helps improve groundwater levels

• Useful in areas with low groundwater availability.

6. Rainwater Harvesting Cost in India

• Basic home system: ₹15,000–₹40,000

• Medium residential system: ₹40,000–₹1,00,000

• Large/custom system: ₹1.5 lakh+

• The cost varies with the size of the roof, the size of the tank, the type of filter, materials used and installation labor.

• It can save water bills and water tankers in the long term.

7. Maintenance Tips for Rainwater Harvesting Systems

• Maintain roofing, guttering and pipe work during dry weather.

• Clean filter units regularly to remove dirt and debris.

• Inspect storage tanks for leaks, algae and sediment.

• Clean first flush diverters and recharge pits to avoid blockage.

• Routine care will help to enhance water quality and system longevity.

Read More: Rainwater Harvesting at Home: Setup, Costs, and Government Subsidies

Government Rules and Incentives for Rainwater Harvesting in India

Rainwater harvesting in some residential and commercial buildings has been found necessary for many Indian cities. Cities such as Bengaluru, Chennai, Delhi and Hyderabad have local regulations for building type or size of plot. Many governments also provide items such as tax breaks, rebates, or reduced water rates. Building owners are encouraged to review the regulations of their municipality prior to installing a system.

Conclusion

This rainwater harvesting system enables water conservation, decreased water consumption, and reduces reliance on water tankers or city water sources. Rooftop harvesting, storage tanks, and recharge pits all contribute to improved water conservation and long-term recharge.

Why HouseGyan?

HouseGyan provides simple and practical tips about house construction and property maintenance, healthy living and real estate. It makes it easy for a homeowner to learn key issues and take assured actions.

FAQs

1. What is rainwater harvesting and how does it work?

Rainwater harvesting is the process of capturing rainwater on rooftops or surfaces, filtering and storing it in a rainwater storage tank or groundwater recharge.

2. What are the benefits of rainwater harvesting for homes?

The many rainwater harvesting benefits include reducing water bills, increasing water supply, reducing reliance on tanker vehicles and enhancing water conservation.

3. How much does a rainwater harvesting system cost in India?

The rainwater harvesting cost in India usually starts from ₹15,000–₹40,000 for basic homes and can go above ₹1.5 lakh for larger systems.

4. Is rainwater harvesting mandatory in India?

Yes, a rainwater harvesting system is required by the selected residential and commercial buildings in many cities of India.

5. Can harvested rainwater be used for drinking?

Well, after it's been filtered and purified, yes. Clean, garden and flush with untreated rainwater.

6. What components are required for a rainwater harvesting system?

A home rainwater collection system requires a catchment area, guttering, piping, a filter and a first flush diverter, a water storage tank, a recharge pit, and a distribution network.
