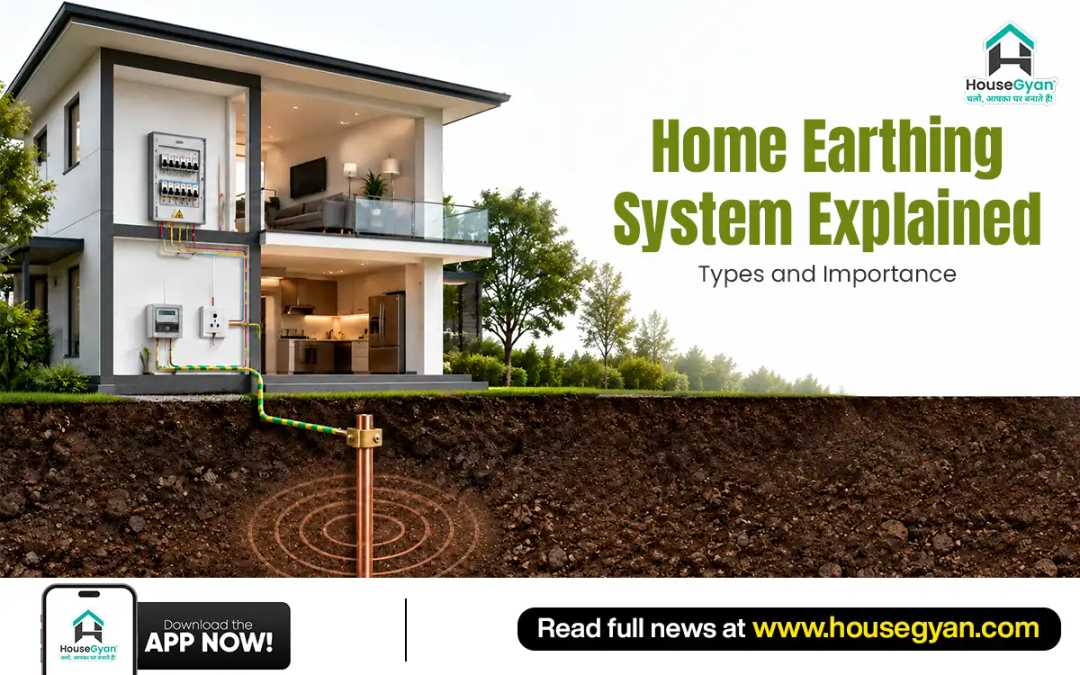

Home Earthing System Explained: Types and Importance

In a modern home, most appliances are operated by electricity, so electrical safety is more critical than ever. One of the most important safety features a house can provide is a home earthing system, which safely conducts fault current to the ground and therefore protects people and electrical equipment from electrical hazards.

Building a new home or upgrading an electrical system, understanding how home earthing works will ensure long-term safety and adherence to electrical standards. This Home Earthing Installation Guide covers importance, earthing types, how it works and maintenance in simple terms.

What Is a Home Earthing System?

A system for earth-connection of an electrical installation using a conductor is called a home earthing system. During an electrical fault or current leakage, the excess current flows safely into the ground instead of passing through people or appliances.

A reliable system of electrical earthing reduces the risk of electric shocks, damage to equipment, and electrical fire and also enhances the safety of the electrical network of the house.

Why Is Earthing Important in a Home?

It provides good protection for humans and the electrical installations through a good earthing system.

1. Protects Against Electric Shock

The main function of home Earththing is to reduce the chances of getting electric shocks by allowing the leakage current to flow into the earth with no damage.

2. Prevents Damage to Electrical Appliances

Expensive appliances can be ruined by electricity problems and how the voltage is handled. A good earthing system allows the excess current to run safely, thereby shielding those appliances like coolers, refrigerators, televisions, computers, etc.

3. Reduces Fire Risks

Overcurrents and short circuits can produce excessive heat and lead to fire risks. These risks can be minimised by a good earthing system to ensure a safe discharge of fault current from the electrical installation.

4. Protects During Lightning Strikes

The purpose of a good house earthing system is to allow lightning activity to disperse electrical surges, minimizing damage to interconnected equipment and wiring.

5. Ensures Safe Operation of Safety Devices

The proper earthing system is a prerequisite for the proper operation of devices like MCB, RCCB, ELCB, etc. These protective devices are able to disconnect a fault circuit quickly when earthing is present.

Read More: Electrical Planning Checklist Before Home Interior and False Ceiling Work.

Types of Earthing Systems Used in Homes

There are several earthing types used, depending upon the soil conditions, cost, and electrical needs.

1. Plate Earthing

For plate earthing, a plate of copper or galvanized iron is buried deep in the earth and filled with charcoal and salt for better conductance. It's dependable but will need greater digging.

2. Pipe Earthing

Pipe earthing is done by embedding a vertical galvanized iron pipe with holes made in it into the ground. One of the most popular methods used for residential buildings is due to its effective grounding capacity, small space needed, and low cost.

3. Rod Earthing

Rod earthing is a method that involves the insertion of a copper or galvanized steel rod into the ground. It can be used in rocky areas where excavation is problematic.

4. Strip or Wire Earthing

This process is achieved by the inclusion of buried metal strips or wires that offer grounding on a larger surface area. It is mainly applied to larger buildings, industrial buildings, and electric substations.

5. Chemical Earthing

Chemical earthing is a process of using special chemical conductive compounds around the earth electrode to ensure low earth resistance in dry or rocky ground. It is also easier to care for and offers long-term steady performance.

Plate Earthing vs Pipe Earthing vs Chemical Earthing

Read More: How to Ensure Electrical Safety During the Monsoon Season.

Main Components of a Home Earthing System

The various important components of a complete home earthing system are:

• Earth conductor (plate, pipe, rod, or chemical ground conductor)

• Earthing conductor

• Earth wire

• Earthing pit

• Inspection chamber

• Clamps and connectors

• It contains moisture-retaining material (when necessary)

Each unit is a key part of a good electrical ground.

How Does an Earthing System Work?

Understanding how home earthing works is very easy. In normal operation electricity is conducted through the intended electrical path. The earthing system provides a low-resistance pathway to earth in case the insulation fails or leakage current occurs.

When leakage happens, safety devices like RCCB or MCB identify the fault and stop the power supply, thus saving people from electric shock, appliance damage, and fire hazard.

Signs of Poor or Faulty Earthing

A faulty electrical earthing system could lead to serious safety hazards. Warning signs include:

• Recurring contact with electric shocks from appliances.

• Repeated tripping of MCBs or RCCBs.

• Sparking around electrical outlets.

• Burning smell from electrical wiring.

• Voltage fluctuations.

• Regular breakdowns of electric appliances.

• Corrosion and damage to earthing parts

If these signs are observed, they should be investigated immediately by a qualified electrician.

Tips for Proper Earthing Installation and Maintenance

Here are the best practices to ensure you have an effective home earthing system:

• Select the proper earthing types according to the soil types.

• Ensure high-quality electrodes and conductors

• Make sure professional earthing installation is carried out.

• Regularly check Earth resistance.

• Check for corrosion or damage in the earthing pits

• Ensure the earthing pit is kept in good condition

• Practice immediate replacement of damaged conductors.

• Conduct periodic electrical safety inspections.

Safety and reliability of systems increase through proper maintenance.

Conclusion

One of the most critical factors of residential electrical safety is a properly installed home earthing system. This provides protection from electric shock to occupants, protects appliances, limits the risk of fire, and makes the operation of protective devices effective. Whether it is plate earthing, pipe earthing, rod earthing, or chemical earthing, careful selection of the type and regular maintenance will lead to proper electrical protection for many years.

FAQs

1. What is a home earthing system?

A system used in residential buildings to channel leakage or fault currents responsibly into the Earth, for personal and equipment safety, is a home earthing system.

2. Why is earthing important for residential buildings?

It helps to protect human beings from electrical shock, reduces the risk of fire to protect lives and property, and helps to operate the safety devices like RCCB, MCB, etc.

3. Which type of earthing is best for homes?

For residential buildings, pipe earthing is the most adopted one because it is cheap and efficient, and chemical earthing is employed in dry soil or rocky soil.

4. How often should a home earthing system be tested?

Regular checks are offered every 1-2 years, or more often, where environmental conditions are challenging.

5. What are the signs of poor or faulty earthing?

Common symptoms are electric shocks, a lot of tripped circuits, power surges, sparks, smoke, and damaged appliances.

6. Can a home have more than one earthing point?

Yes. Larger houses or buildings having a high electrical load may employ multiple earthing points for better electrical safety and low earth resistance.
