What is Lintel Beam? Functions and Types

Introduction

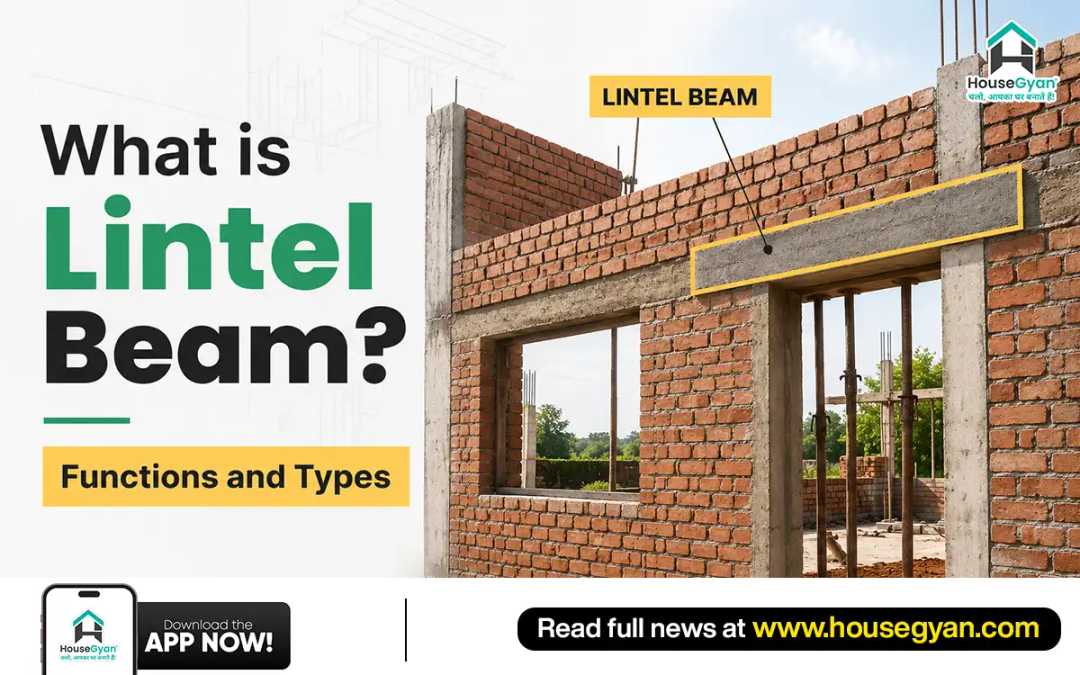

A lintel beam is a horizontal beam above doors and windows to safely distribute wall loads. What is lintel beam in house construction simply means a beam placed above an opening to prevent cracking and to add stability. This is why lintel beam in construction is important. Promotes masonry, transfers loads, and keeps buildings safer and stronger.

What is a Lintel Beam?

• What is lintel beam? A horizontal piece of wood or metal that is used to cover doorways and windows..

• Lintel Beam Meaning is simply a beam that carries the load of the wall over an opening.

• If the beam above the window or door, then it is commonly referred to as a lintel beam.

Why is a Lintel Beam Important in Construction?

• Doors and windows are protected from direct wall load by lintel beams .

• That is the reason why lintel beams are used above doors and windows in the majority of buildings.

• In lintel beam in construction, it enhances load transfer, stability, and safety for walls in.

Functions of a Lintel Beam

Here are the functions and types of lintel beam-

• The lintel beam functions to support the wall above an opening and safely distribute the load to the sides of the opening.

• It prevents cracking in the area around doors and windows.

• It also brings enhanced stability and durability to the walls.

Where is a Lintel Beam Provided?

• Lintel beam is installed over doors, windows, ventilators and other wall openings.

• It acts as the beam above the window or door that supports the masonry above.

• The lintel beam is most often used in construction.

Read More: What is Plinth Beam? Importance in House Construction.

Types of Lintel Beams Used in Construction

Here are the construction beam types-

1. RCC Lintel Beam

The RCC lintel beam is the most common type in modern houses because it is strong, durable, and reliable.

2. Wooden Lintel

Wooden lintels were used more in older buildings. They are lighter but less durable than RCC in long-term use

3. Steel Lintel

Steel lintels are strong and can carry higher loads, but they are less common in normal houses due to cost and corrosion concerns

4. Brick Lintel

Brick lintels are used in smaller openings and lighter load situations, but they are not as strong as RCC.

5. Stone Lintel

Stone lintels are mostly found in traditional construction. They are heavy and suitable only in specific cases.

These are the common types of lintel beam used in buildings.

Lintel Beam vs Plinth Beam

• The difference between lintel beam vs plinth beam is primarily due to their use and location.

• There is a lintel above the door and window openings.

• A plinth beam is available at plinth level above the foundation.

• The difference between lintel beam and plinth beam, lintel beam is used to support the load of the wall over openings, whereas a plinth beam is used to support the load of the wall at the base level.

Advantages of RCC Lintel Beams

The RCC lintel beam is strong, durable and it is easily used in most houses. It provides higher load bearing capacity, is crack resistant, and is suitable for contemporary construction. Hence RCC is generally used in the residential buildings as lintel beams.

Standard Size of Lintel Beam

The thickness of the wall, width of the opening and load are all factors that determine the lintel beam size. In many houses, the wall width is used as the width, while the depth may be determined by structural requirements. The standard size of RCC lintel beam should always be decided as per design and site condition.

Lintel Beam Construction Process

After the openings for the walls are marked, construction begins. Shuttering is installed over the opening and reinforcement is used and concrete pouring is done. Masonry is carried on above after the curing. It is crucial that lintel beam work is properly aligned and reinforced.

Common Lintel Beam Construction Mistakes to Avoid

Typical errors are related to the lintel beam size, reinforcement, concrete and curing. Not providing adequate bearing on either side of the opening is another error. These errors can weaken the lintel.

Conclusion

Knowing what lintel beam is, where it is found and why it is used in safe home construction. A lintel beam in construction is not only a small beam over an opening but also an important support element that enhances the stability and mitigates cracking. From basic load transfer to wall safety, the lintel beam functions are very important in every house.

Why Housegyan?

HouseGyan covers building subjects in a simple, easy-to-understand manner to help the homeowner better comprehend structure, materials and planning in their home.

FAQs

1. What is a lintel beam in construction?

Lintel beam: A horizontal beam across a door or window opening.

2. Why is a lintel beam important in a building?

It takes the load on the wall over openings and helps to avoid cracking.

3. Where is a lintel beam provided?

Installed over windows, doors, ventilators and on the wall openings.

4. What are the common types of lintel beams?

The common types of lintel beam are RCC lintel, wood lintel, steel lintel, brick lintel and stone lintel.

5. What is the difference between lintel beam and plinth beam?

The difference between lintel beam and plinth beam would be the way they are used and positioned in the building.

6. Which material is best for lintel beams?

For the majority of homes, RCC lintel beam is the finest option available as it is the strongest and durable solution for them.
