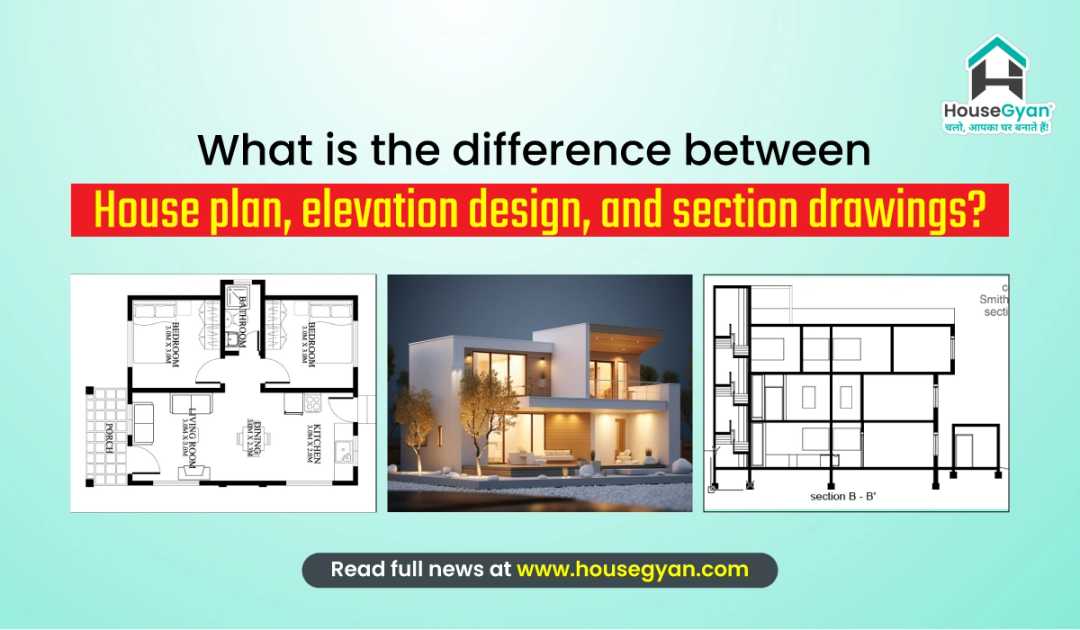

What is the Difference Between House Plan, Elevation Design, and Section Drawing?

When you’re building your dream home, you’ll hear terms like house plan, elevation design, and section drawing. These are essential parts of your house design — but many people don’t understand what they mean or how they’re different.

Main Difference Between House Plan vs Elevation Design vs Section Drawing

What is a House Plan? (Also called a Floor Plan)

A house plan is a top-down 2D view of your house. Imagine looking at your home from above with the roof removed. It shows the layout of every room and the connection between spaces.

Features of a House Plan:

• Room sizes and positions

• Location of doors and windows

• Kitchen, bathroom, hall layout

• Staircase and parking (if applicable)

• Wall thickness and passage space

Why It’s Important:

• Helps homeowners understand the space usage

• Required for approvals and building permits

• Helps contractors during construction

• Useful for interior planning later

A well-designed floor plan ensures maximum space utilization and comfort in living.

What is an Elevation Design?

An elevation design shows how your home will look from outside — front, side, or back. It is like a visual sketch or photo of your house from the road.

Types of Elevation:

• Front Elevation: Outer front view (most common)

• Side Elevation: Side walls and windows

• Rear Elevation: Back portion of the home

• Compound Wall Elevation: Fence or boundary wall design

Why It’s Important:

• Shows the height, design, and shape of the house

• Helps finalize exterior looks, colors, and textures

• Helps in Vastu planning and ventilation

3D elevation designs are trending today — helping homeowners visualize their dream home in a more realistic way.

What is a Section Drawing?

A section drawing shows a vertical slice of your house, like cutting a cake in half and seeing the layers inside.

It shows floor-to-ceiling height, slab thickness, stairs, beam placements, and other structural elements.

What’s Included:

• Floor levels and ceiling heights

• Roof and slab thickness

• Internal walls, ducts, beams

• Stair steps and risers

• Internal structures (false ceilings, water tanks, etc.)

Why It’s Important:

• Helps builders during construction

• Ensures accuracy of heights and alignments

• Important for multi-floor building planning

• Supports structural stability

Key Differences Between House Plan, Elevation, and Section Drawing

Why Understanding These Drawings Helps You Build Better

• Avoid misunderstandings with architects and builders

• Make changes before construction begins

• Ensure Vastu, airflow, light, and design all align

• Helps you visualize and plan your dream home better

FAQs

What is the difference between plan and elevation in construction?

• A plan shows a top-down layout of rooms.

• An elevation shows the outer appearance of the house.

What is section drawing in architecture?

• A section is a cut-through view of the building that shows heights, floors, and hidden internal details.

Are house plans and elevation designs enough to build a house?

• No. You also need structural, plumbing, electrical, and section drawings for accurate execution.

Can I get 3D versions of these drawings?

• Yes. Today, most architects offer 3D house plans and 3D elevation designs to help you visualize better.

Final Thoughts

Understanding the difference between house plan, elevation design, and section drawings is key to building a smart, well-designed, and comfortable home.

Don’t skip these steps — they save time, money, and prevent future mistakes.

Whether you're building a low-budget single floor home or a luxury double-floor bungalow, these three drawings are the foundation of your home design process.
